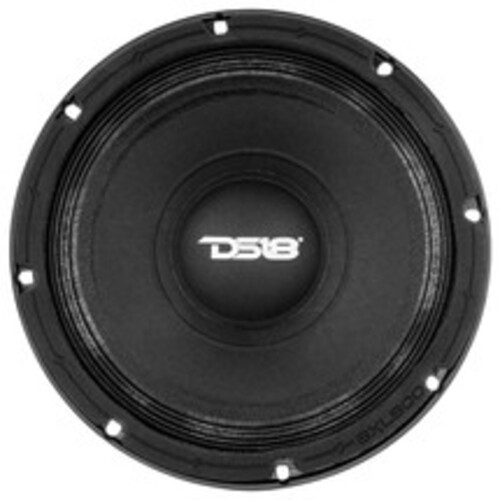

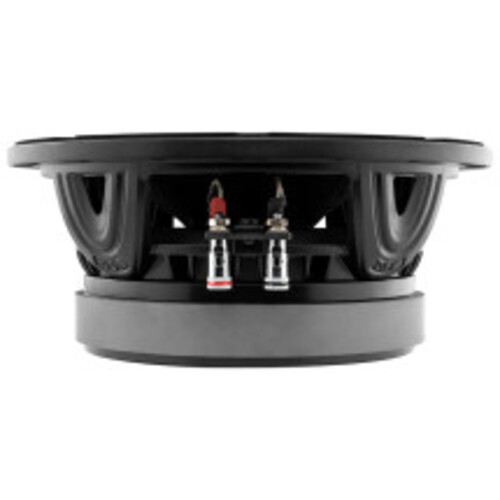

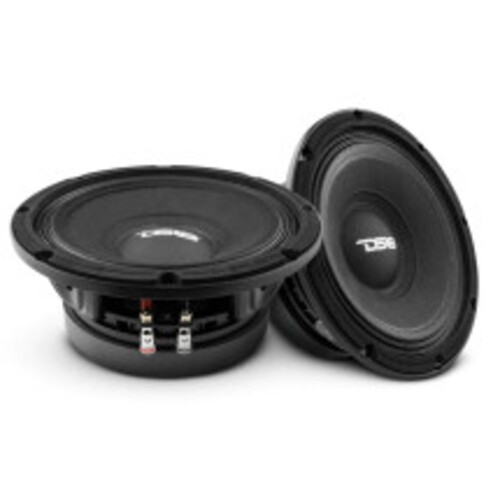

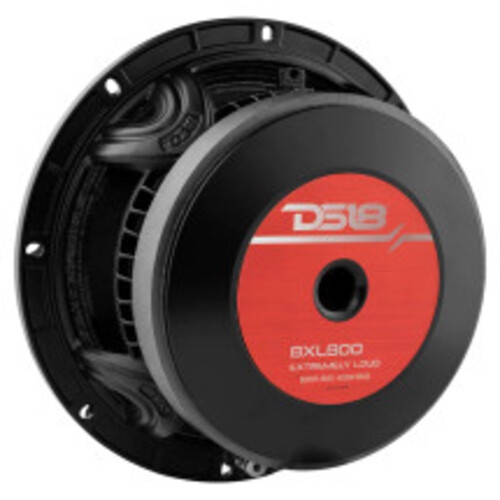

DS18 8XL800-8 XL Series 8" Mid-Range Loudspeaker 400W RMS - 8 Ohm

About: DS18 8XL800-8 XL Series 8" Mid-Range Loudspeaker 400W RMS - 8 Ohm (Each)

DS18’s 8XL800-8 is power and precision personified. Designed for an unparalleled sound experience, this speaker is sure to change the way you experience music. DS18’s 8XL800-8 stands head and shoulders above the mid-range competition. This 8-inch loudspeaker comes in 4-ohm and 8-ohm impedance ensuring compatibility with a wide range of audio systems, for seamless integration into any setup.

With power handling of 400W RMS and 800W MAX these speakers are guaranteed to blow you away. The frequency response of 60Hz-8KHz ensures an extensive range that captures every nuance of your favorite music genres while the sensitivity rating of 99 dB guarantees crystal-clear sound reproduction, even in large venues.

Crafted with precision, DS18’s 8XL800-8 features a 2" Kapton voice coil and a non-pressed paper cone for enhanced durability and optimal sound reproduction. The satin black aluminum basket not only enhances the speaker's aesthetics but also provides structural integrity. The ferrite magnet weighing in at 56 ounces ensures powerful and accurate bass responses that will leave you amazed. Elevate your audio game with the DS18 8XL800-8!

Product Highlights:

8" Mid-Range

MAX Power: 800 Watts

RMS Power: 400 Watts

Impedance: 8-Ohm

Ferrite Magnet

Aluminum Basket

Specifications:

Nominal Diameter: 8" (203 mm)

Nominal Impedance: 4 Ohm

RMS Power Handling: 400 watts

MAX Power Handling: 800 watts

Sensitivity (1w/1m): 99dB

Frequency Response: 60Hz-8KHz

Recommended HI Pass Crossover: 90Hz

Sold in Pair or Single: Single

Grill Included: No

Motor:

Voice Coil Diameter: 2" (50.8 mm)

Voice Coil Former Material: Kapton

Winding Material: CCAW

Cone Material: Non-pressed Paper

Dust Cap Material: Paper

Bullet Material: N/A

Bullet Color/Finish: N/A

Surround Material: Cloth

Basket Material: Aluminum

Basket Color/Finish: Satin Black

Magnet Material: Ferrite

Magnet Weight: 56 Oz

Displacement Volume: 0.85L / 0.03ft3

Thiele & Small Parameters:

Equivalent Volume: 14.8L / 0.52ft3

Excursion (one way): 2.3mm

Free Air Resonance: 90Hz

Mechanical Factor: 5.62

Electrical Factor: 0.39

Total Factor: 0.36

Mechanical Mass: 15.2g

Mechanical Compliance: 0.23mm/N

BL Factor: 10.7

Voice Coil Inductance; 0.05mH

Cone Area: 211.24cm²

DC Resistance: 5.5 ohm

Mechanical Mass w/o air: 17.5g

Measurement:

Overall Diameter: 8.2" (210 mm)

Overall Depth: 3.8" (96.4 mm)

Front Mount Baffle Cutout: 7.2" (183 mm)

Mounting Depth: 3.34" (84.5 mm)

Motor Diameter: 6.14" (156 mm)
