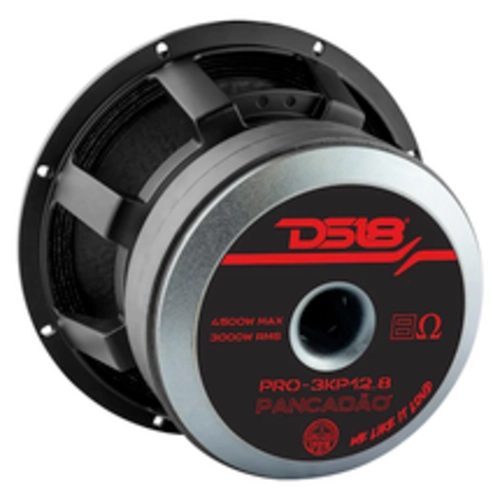

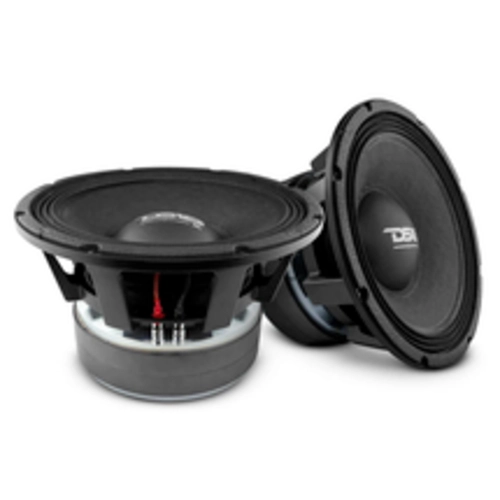

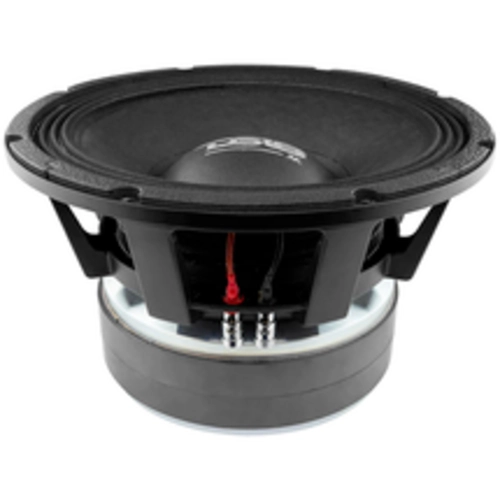

About: DS18 PRO-3KP12.8 12" PANCADÃO Mid-Bass Loudspeaker 3000W RMS - 8 Ohm (Each)
a Featuring a large high-strength ferrite magnet and reinforced aluminum basket, the PRO-3KP12.8 is built to handle insane amounts of power and get LOUD like no other. Its 3000 Watts RMS Power Handling and 6000 Watts MAX Power Handling make it one of the most powerful mid-bass speakers on the market. But that's not all - this speaker is a true "do-all" woofer, capable of playing an incredible range of frequencies from hard-punching mid-bass to mid-high vocals, all at an unbelievable volume. With a sensitivity of 95dB and a frequency response of 45Hz-3KHz, the PRO-3KP12.8 sets a new standard for sound quality.
DS18’s PRO-3KP12.8 PANCADÃO Mid-Bass Loudspeaker is designed to be versatile enough to fit in any sound system, and this is further emphasized by the range of impedances available for this speaker. The PRO-3KP12.8 is offered in a 8-Ohm configuration, which makes it compatible with a wide range of amplifiers and audio systems, but these speakers also come in 4-ohm and 2-ohm configurations. This flexibility in impedance options allows the speaker to work seamlessly with different audio setups, ensuring that you get the best performance out of your sound system. If you're looking for a speaker that will set your sound system apart from the rest, look no further than DS18’s PRO-3KP12.
Product Highlights:
12" Mid-Bass
MAX Power: 6000 Watts
RMS Power: 3000 Watts
Impedance: 8-Ohm
Ferrite Magnet
95dB
Specifications:
Nominal Diameter: 12" (304 mm)
Nominal Impedance: 8 Ohm
RMS Power Handling: 3000W
MAX Power Handling: 6000W
Sensitivity (1w/1m): 95dB
Frequency Response: 45Hz-3KHz
Recommended HI Pass Crossover: 70Hz
Sold in Pair or Single: Single
Grill Included: No
Motor:
Voice Coil Diameter: 4" (101.6 mm)
Voice Coil Former Material: Fiber Glass
Winding Material: CCAW
Cone Material: Non-Pressed Paper
Dust Cap Material: Paper
Surround Material: Cloth
Basket Material: Aluminum
Basket Color/Finish: Black
Magnet Material: Ferrite
Magnet Weight: 250 oz
Displacement Volume: 3.98L / 0.14ft3
Thiele & Small Parameters:
Equivalent Volume (Vas): 25L / 0.88ft3
Excursion (one way) Xmax: 7mm
Free Air Resonance (Fs): 62Hz
Mechanical Factor (Qms): 2.084
Electrical Factor (Qes): 0.377
Total Factor (Qts): 0.32
Mechanical Mass (Mms): 113.1g
Mechanical Compliance (Cms): 56.12 mm/N
BL Factor (BL): 18.5
Voice Coil Inductance (Le): 621 mH
Cone Area (Sd): 510.71 cm2
DC Resistance (Re): 5.6 ohms
Efficiency Bandwidth Product EBP: 159
Recommended Enclosures:
Ported Internal Volume: 50L / 1.78ft3
Port Size *Square (W x H x L): 4.72" x 12.8" x 9" (120 x 325 x 230 mm)
Port Tuning Frequency Fb: 76Hz
Ported Box Output Response F3: 65Hz
Measurement:
Overall Diameter: 12.36" (314 mm)
Overall Depth: 7.75" (197 mm)
Front Mount Baffle Cutout: 11.18" (284 mm)
Mounting Depth: 7.2" (183 mm)
Motor Diameter: 8.66" (220 mm)
Gross Single Unit Weight: 51 lb
Single Unit Box Dimensions (L x W x H): 15" x 15" x 11"
