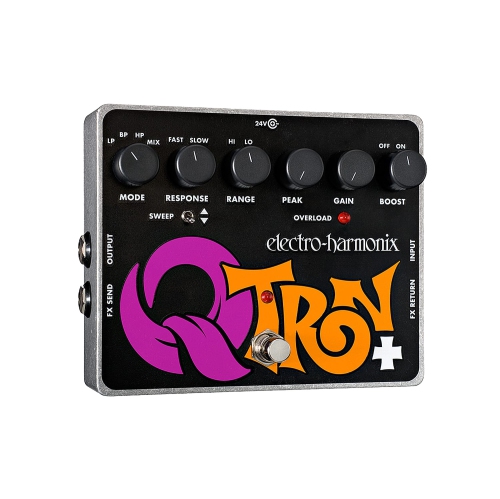

Electro-Harmonix Q-Tron Plus Envelope Filter Pedal with Effects Loop

Same design as the original EHX Q-Tron but with extremely useful Effects Loop and an Attack Response Switch. The Effects Loop gives the ability to place an additional effect, or chain of effects, between the EHX Q-Tron Plus's preamp and filter section without changing the envelope drive. This is particularly important as most distortion devices do not have much of an amplitude envelope. The FX loop will also fire up your creative juices to try all sorts of combinations in the effects loop: try the Micro POG into a Deluxe Memory Man. You can invent all sorts of novel effects. The added Response Switch selects between a slow, smooth, vowel-like attack and the fast, snaked response of the original Q-Tron.

Features

* True bypass

* Dedicated effects loop allows you to place any effect or pedal board into the loop

* FX send and return without changing the envelope drive

* Selectable low pass, band pass and high pass filters

* Resonant peak control to adjust the filter's Q from subtle to dramatic

* Response switch changes the reaction time of envelope follower from fast to slow

* Switchable hi or lo frequency sweep ranges

* Adjustable gain knob and boost switch

* Sweep direction switch for up or down filter sweeps

* Power adapter included

Specifications

Circuit: Analog

Bypass: True Bypass

Audio: Mono

Effects Loop: Yes

Power Supply: 24VDC-100mA power adapter included

Dimensions (in): 5.75 x 4.75 x 2.5

Current Draw: 35mA
