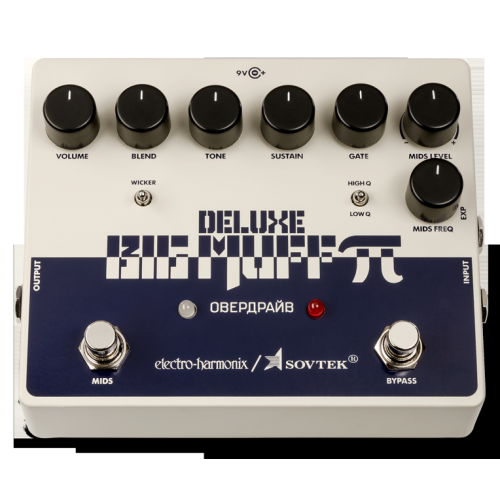

Electro-Harmonix Sovtek Deluxe Big Muff Pi

The new Sovtek Deluxe Big Muff Pi combines the "Civil War" / "Tall Font" Green Russian Big Muffs plus the Deluxe Big Muff Pi. It's all here in one integrated pedal. The Sovtek signature sound. The devastating low end, crisp highs and non-scooped mids, plus the advanced control of the Deluxe Big Muff in a single, completely integrated pedal.

The familiar Sustain, Tone and Volume knobs are joined by a ton of extras from the Deluxe Big Muff for those who crave its deep sound shaping abilities.

Here's what the Sovtek Deluxe Big Muff Pi provides:

MIDS EQ Parametric MIDS EQ section with a selectable center frequency ranging from 310Hz to 5.0kHz, a level control with up to 10dB of boost or cut and a high/low Q switch that sets the resonance/bandwidth of the EQ

FOOTSWITCH for MIDS EQ Dedicated on/off footswitch with status LED for the MIDS EQ circuit

GATE Noise gate to remove unwanted hiss and hum

BLEND Mix control for the dry and distorted signals. Enables bass players to retain their signals low end; also useful when layering in other distortion pedals

WICKER With the switch up, high frequency bandwidth is opened up for a more pronounced attack. Switch down yields the traditional Green Russian sound.

EXPRESSION PEDAL INPUT Sweeps the frequency of the MIDS EQ to create wah wah and cocked wah effects

TRUE BYPASS Maintains signal path integrity in bypass mode

INTERNAL INPUT BUFFER SWITCH An internal slide switch to engage a buffer on the Big Muffs input circuit that increases the high end content of both the distorted and clean signal being blended in

MIDS EQ TRIM POTS Three internal trim pots for adjusting (a) High Q bandwidth, (b) High Q output volume and (c) overall MIDS EQ output volume.

Quick Specs

- Foot-switchable MIDS EQ section that delivers extensive sound shaping control

- High Q / Low Q switch

- Wicker switch to open up high frequency bandwidth

- Noise Gate

- Expression pedal input

- True Bypass

- Equipped with a 9 Volt battery, accepts an optional EHX 9.6DC 200mA power supply
