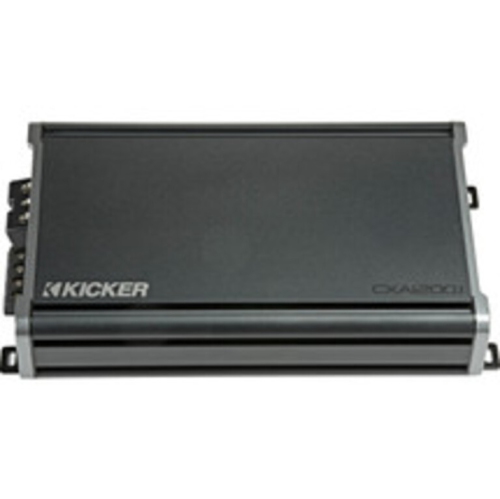

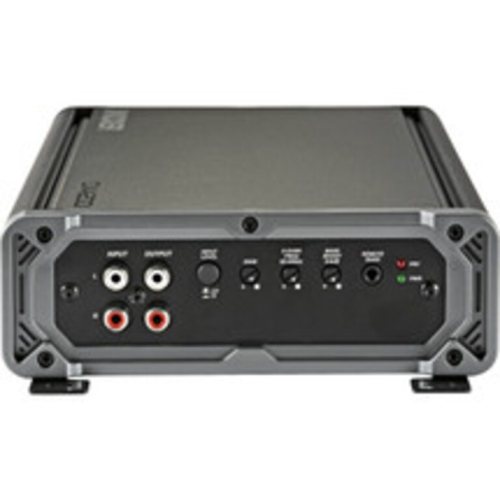

Kicker 46CXA12001 CX Series 1200W RMS Monoblock Amplifier

About: Kicker 46CXA12001 CX Series 1200W RMS Monoblock Amplifier

The CXA1200.1 Mono Amplifier is built for affordable power and performance, thanks to an optimized circuit layout and the high-grade internal components.

Mono Monster

This mono CX-Series Amp is now one-ohm stable, giving you even more wiring options for your system! The Class-D CXA1200.1 features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump. A powerful 12dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection. From your dash, a simple turn of the optional CXARC Remote Bass Controller (sold separately) increases your output to fit your choice of music.

CX-Series Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality at the same time! Use the full-range outputs to expand your system with other bass amps, or add a full-range amp to complete your system. This CX.1 Amplifier delivers as much as 1,200 watts into one bass channel.

Features:

Efficient Class-D amplifier

Three-second turn-on/off delay to eliminate unwanted interference

Variable 12dB crossovers provides control to dial in perfect sound

KickEQ™ 6dB variable bass boost for those additional low frequencies

24dB subsonic filter for protection from potentially damaging frequencies

FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio

Accepts up to 40-volt input signal

Small footprint for easier installation

Compatible with CXARC Remote Bass Control

Vertical mounting hardware included for another unique look

Specifications:

Mono subwoofer amplifier CTA-2006 compliantClass D amp technology

600 watts RMS x 1 at 4 ohms (1200 watts RMS x 1 at 2 ohms)

1200 watts RMS +/-10% x 1 at 1 ohm

Frequency response: 25-200 Hz

Variable low-pass filter (50-200 Hz, 12 dB/octave)

Fixed subsonic filter (25 Hz, 24 dB/octave)

Variable bass boost (0-6 dB at 40 Hz)

Preamp inputs and outputs

Speaker-level inputs

3-second delay for turn-on and turn-off

Includes hardware for vertical mounting

Wiring, fuse, and hardware not included with amplifier

Dimensions (W x H x D): 12-5/8" x 2-3/8" x 6-3/4"

4-gauge power and ground leads and a 150-amp fuse recommended

What's in the Box:

Mono amplifier

2 Vertical mounting brackets

3mm Allen wrench

Four 3/4" Screws

Owner's manual

Power chart

Certified Power certificate
