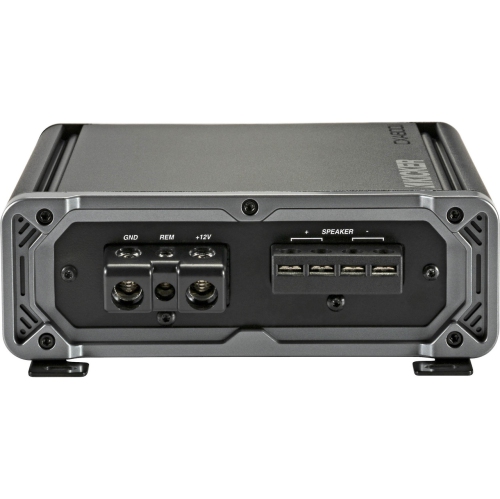

About: Kicker 46CXA8001 CX Series 800W RMS Monoblock Amplifier
The CXA800.1 Mono Amplifier is built for affordable power and performance, thanks to optimized circuit layout and high-grade internal components.
About That Power
This CX-Series Mono Amp is now one-ohm stable, giving you even more power and wiring options for your system! This Class-D CXA800.1 features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump. A powerful 12dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection. Use the full-range outputs to expand your system with other bass amps, or a full-range amp to complete your system. From your dash, a simple turn of the optional CXARC Remote Bass Controller (sold separately) increases your output to fit your choice of music.
CX-Series Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality at the same time! Expand your system with full-range, RCA pass-through outputs, then choose a “standard” mount or a cool vertical mount with the included hardware. This CX.1 amplifier delivers as much as 800 watts into one bass channel. See below for more details.
Features:
•Efficient Class-D amplifier
•Three-second turn-on/off delay to eliminate unwanted interference
•Variable 12dB crossovers provides control to dial in perfect sound
•KickEQ™ 6dB variable bass boost for those additional low frequencies
•24dB subsonic filter for protection from potentially damaging frequencies
•FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
•Accepts up to 40-volt input signal
•Small footprint for easier installation
•Compatible with CXARC Remote Bass Control

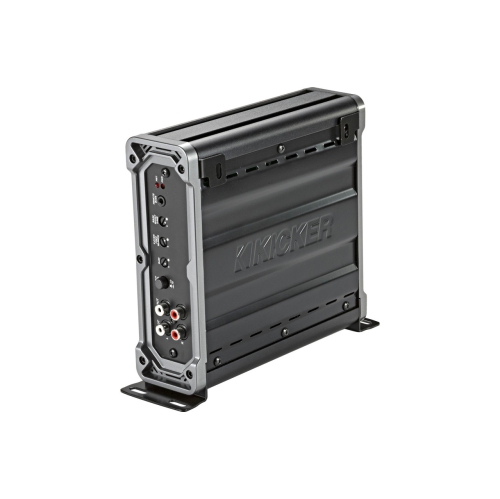

•Vertical mounting hardware included for another unique look
Specifications:
•Mono subwoofer amplifier CTA-2006 compliant
o300 watts RMS x 1 at 4 ohms (600 watts RMS x 1 at 2 ohms)
o800 watts RMS x 1 at 1 ohm
•Class D amp technology
•Frequency response: 25-200 Hz
•Variable low-pass filter (50-200 Hz, 12 dB/octave)
•Fixed subsonic filter (25 Hz, 24 dB/octave)
•Variable bass boost (0-6 dB at 40 Hz)
•Preamp inputs and outputs
•Speaker-level inputs
•3-second delay for turn-on and turn-off
•Includes hardware for vertical mounting
•Wiring, fuse, and hardware not included with amplifier
•Dimensions (W x H x D): 8-5/8" x 2-3/8" x 6-3/4"
o4-gauge power and ground leads and a 100-amp fuse recommended
What's in the Box:
•Mono amplifier
•2 Vertical mounting brackets
•3mm Allen wrench
•Four 3/4" Screws
•Owner's manual
•Power chart
•Certified Power certificate
