A WIDE VIEW FOR TIGHT SPACES

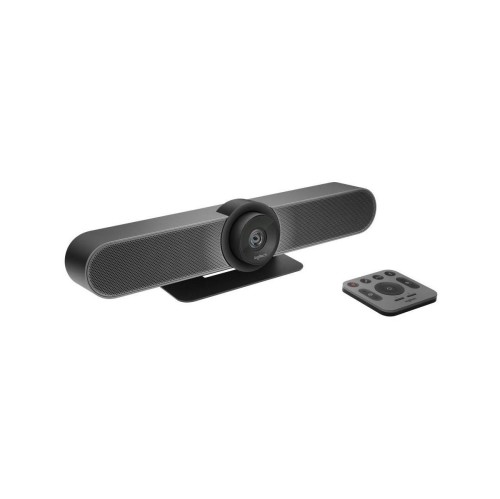

Logitech® MeetUp brings remarkable video quality to small conference rooms. Its 120-degree field-of-view easily accommodates huddle rooms where people sit on either side of the camera. The 4K ultra high-def sensor and Logitech lens deliver extra sharp clarity, while pan, tilt, and zoom controls let you focus on presenters and their visual aids.
HEARING IS BELIEVING
MeetUp’s integrated audio is optimized for huddle room acoustics, delivering exceptional sound in small rooms. Three beamforming mics and a custom-tuned speaker ensure meetings sound as great as they look. Add Expansion Mic for MeetUp to extend the audio range up to 4.2 meters.
AS EASY AS PLUG AND PLAY
Step into a huddle room and instantly start a video collaboration. MeetUp plugs into a USB port and simply works. Use any video conferencing software application and cloud service, including the ones you already use.
DESIGNED FOR THE WAY PEOPLE MEET
Small conference rooms are growing in popularity, and MeetUp rises to the challenge. It provides superb resolution, color balance, detail, and audio in tight spaces. With the included wall mount and compact design that minimizes cable clutter, MeetUp optimizes the huddle room experience.
EXTRAS PROVIDE MORE CONVENIENCE
Our free mobile app (available on Google Play and iTunes) turns your smartphone or tablet into a remote control for MeetUp. Add accessories such as the Logitech Expansion Mic and TV Mount for different room sizes and configurations. Order replacement parts if needed to keep everything up and running.
5X ZOOM
Perfectly frame presenters to minimize background distractions. Zoom in on whiteboards and objects so remote participants can see what you see. Thanks to its advanced 4K image sensor, video remains sharp and clear, even when you zoom in on the details.
PREMIUM CAMERA OPTICS
MeetUp features exquisitely engineered, premium camera optics that capture a wide field-of-view without distorting faces and furniture with a “fisheye” effect. Faces look natural, whiteboard writing remains legible, and straight lines stay straight.
EXPANSION MIC-READY
Logitech Expansion Mic for MeetUp provides greater flexibility in huddle room configurations. MeetUp’s built-in beamforming mics are optimized for up to 8 feet (2.4 meters). To extend that range up to 14 feet (4.2 meters), add an Expansion Mic. So whether people are seated at a table, sitting against the wall, or walking around the room, Expansion Mic for MeetUp means everyone will be heard.
CERTIFIED FOR BUSINESS
MeetUp offers a plug-and-play USB connection to conference room computers, and is certified for Skype for Business, Microsoft Cortana®, Cisco Jabber™ compatible, and offers enhanced integration with BlueJeans, Broadsoft, LifeSize Cloud, Vidyo, and Zoom. If your preferred application can recognize a webcam, you can use it with MeetUp.
BLUETOOTH®SPEAKERPHONE
Already connected on your smartphone? Dialing into an audio conference? Pair MeetUp with your smartphone or tablet to enjoy outstanding audio clarity, volume, and range that handheld devices can’t match.
RF REMOTE CONTROL
With a multi-directional remote control, you can easily operate camera controls, adjust volume, and mute/unmute from anywhere in the room. Featuring a low-profile design, premium materials, and a non-slip base, the MeetUp Remote Control feels as good on the tabletop as it does in your hand.
VERSATILE TV MOUNT
Logitech TV Mount for MeetUp lets you mount the MeetUp ConferenceCam either above or below a flat-panel monitor, and attaches to the industry-standard VESA mounting points available on most TVs and monitors.
SMARTPHONE REMOTE CONTROL
The ConferenceCam Soft Remote app (available on Google Play and iTunes)replicates every function of the physical MeetUp remote on your smartphone or tablet.
•
DIMENSIONS
Main unit
Height x Width x Depth:
104 mm x 400 mm x 85 mm
Weight: 1.04kg
Remote Control
Height x Width x Depth:
83 mm x 83 mm x 10 mm
SYSTEM REQUIREMENTS
Windows®7, Windows 8.1, or Windows 10
macOS 10.10 or higher
Chrome OS™ Version 29.0.1547.70 and higher
USB 2.0 port (USB 3.0 required for 4K video)
• TECHNICAL SPECIFICATIONS
OVERALL
o
• Super-wide 120-degree field of view
• 3-microphone speakerphone
• Optional expansion microphone-ready
• 4K Ultra HD video calling (up to 3840 x 2160 pixels @ 30 fps with customer-supplied USB 3.0 cable); 1080p Full HD video calling (up to 1920 x 1080 pixels @ 30 fps); 720p HD video calling (up to 1280 x 720 pixels @ 30 fps); with supported clients
• All-in-one design
• Motorized pan/tilt
• Logitech lens
• 3 camera presets
• Bluetooth® wireless technology
• RF remote control
• Multiple mounting options, including table and wall mount; optional TV mount available
• Kensington security slot
MICROPHONE
o
• Pickup Range: 2.4 m /8’
• Pickup Range with Expansion Mic: 4.2 m /14’
• Sensitivity: -27dB
• Microphone frequency response: 90Hz - 16kHz for full voice reproduction and high intelligibility without noise
• Factory-paired, very low distortion broadside beamforming algorithm steers the microphones directly at the talker for the best voice pickup and noise reduction
• AEC (Acoustic echo cancellation)
• VAD (Voice activity detector)
• Microphone background noise suppression
• Pro-audio 32 kHz sampling rate
SPEAKER
o
• Powerful rare-earth magnet
• Acoustically suspended speaker enclosure
• Volume adjustable to 95 dB SPL at 1/2 meter peak
• Speaker sensitivity 86.5+/-3dB SPL at 1/2 meter
• Distortion: 200 Hz–300Hz < 3%, 3000 Hz–10KHz < 1%
• Peak-limiting algorithm prevents even momentary speaker clipping to prevent distortion
o COMPATIBILITY AND INTEGRATIONS
o
• Plug-and-play USB connectivity
• Works with most any video conferencing application or meetings service
• Skype for Business certified
• Microsoft Cortana® certified
• Cisco Jabber® and WebEx compatible
• Enhanced integration with Logitech Collaboration Program (LCP) members, including BlueJeans, Broadsoft, LifeSize Cloud, Vidyo, and Zoom
• PACKAGE CONTENTS
MeetUp ConferenceCam
Remote control
USB cable: 5m
Power supply
Wall mount and hardware
User documentation
