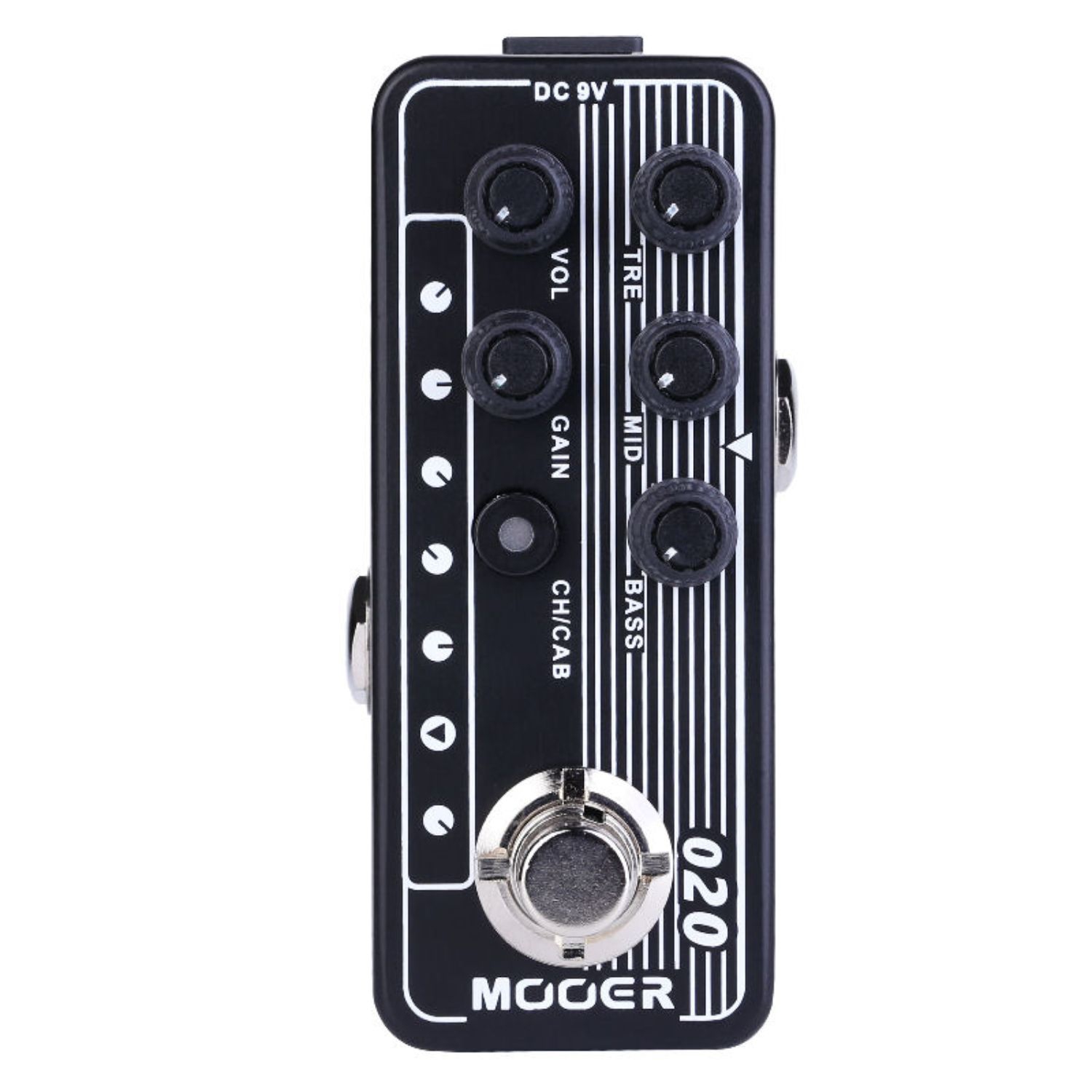

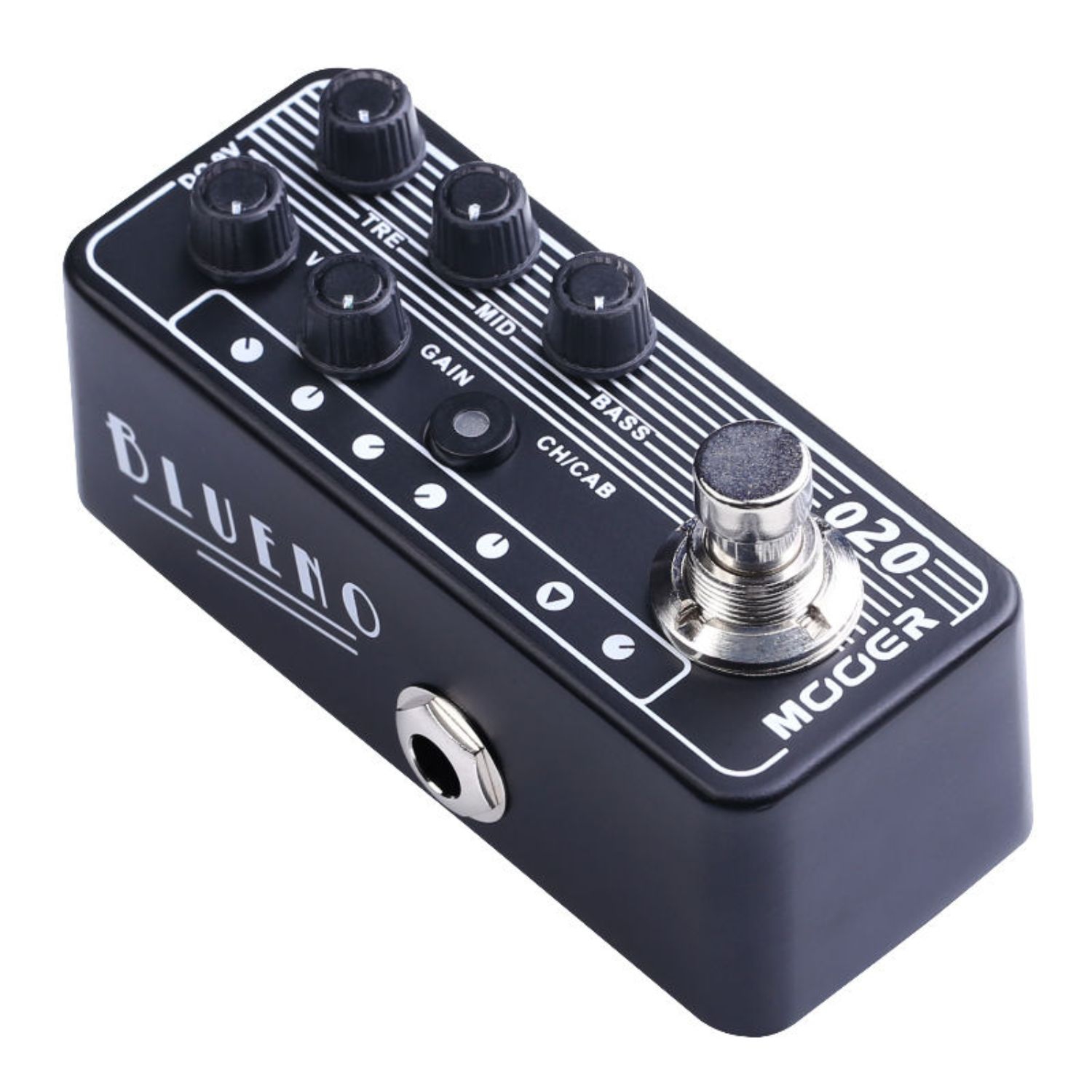

Mooer Preamp 020 Blueno

BLUENO offering up the finest in American boutique.

The 020 BLUENO Obtain the unobtainable. The MOOER BLUENO contains 2 channels that have been directly sampled from a hand-built, 36W Class A masterpiece that some have hailed as “The world's finest sounding amp”. The blue channel has a silky chime that is deep, spacious and sensuous. The red channel supplies a cranked ballsy tone with exquisite upper-end sparkle, rich harmonics and singing sustain.

Key features:

Dual channels with independent Gain, Volume and EQ.

Dual footswitch modes for regular on/off or A/B channel switching.

Optional built in Cab Sim for going direct to the PA or straight into your audio interface for recording

Connection:

1.DCIN:

Connect a DC 9V 300mA centre pin negative power supply

2.INPUT:

Connect your instrument directly or the output of your pre, pre-amp effects like Overdrive, distortion, etc.

3.OUTPUT:

Connect to a power amp or your amplifier’s effects return.(Highly recommend using a tube amplifier)

Different power amplifiers will affect the outcome of the final tone.You can also connect directly to a sound card and activate the speaker cab simulation for recording purposes

Note: You can connect your "fx loop" effects, like modulation and time based effects, in between the MOOER preamps output and the input of the power amp (fx return)

Input：1/4” mono audio jack.（Impedance: 1 meg Ohms）

Output：1/4” mono audio jack（Impedance: 100 Ohms）

Power requirements: AC adapter 9V DC , center negative.（Highly recommend to use Mooer Power.）

Current Draw:300mA

Dimensions:93.5mm(D) x 42mm(W) x 52mm(H)

Weight:160g
