AT A GLANCE
·Micro Four Thirds System
·
·24-400mm (35mm Equivalent)
·
·Maximum Aperture Range: f/3.5-6.3
·
·Three Aspherical Elements
·
·Three HR Elements, Four ED Elements
·
·ZERO Coating
·
·Movie & Still Compatible AF System
·
·Weather-Resistant Construction
·
·Rounded 7-Blade Diaphragm
·
·Filter Thread 72mm

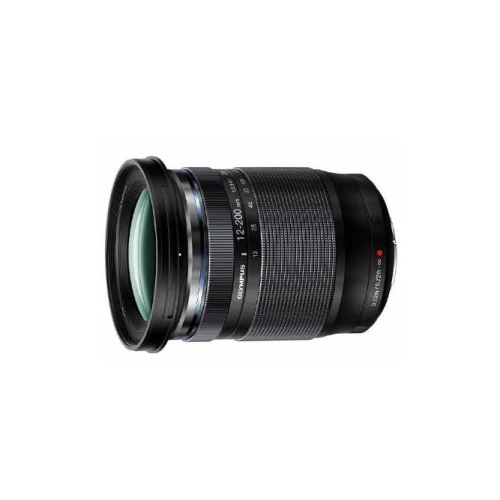

· DESCRIPTIONA single-lens solution for most shooting situations, the M.Zuiko Digital ED 12-200mm f/3.5-6.3 from Olympus is designed for Micro Four Thirds mirrorless cameras and covers a huge 24-400mm equivalent focal length range. Despite its long reach, the lens is also characterized by its portable form factor, close 8.7" minimum focusing distance, and sophisticated optical design, which includes a variety of aspherical, low dispersion, and high refractive index elements to produce well-corrected imagery. A ZERO coating has also been applied to help reduce lens flare and ghosting for greater contrast and color fidelity when working in strong lighting conditions. Additionally, this lens utilizes a Movie & Stills Compatible AF system to achieve smooth, fast, and near-silent focusing performance to benefit both photo and movie applications.
·Spanning an impressive wide-angle to super telephoto range, this 12-200mm zoom is designed for Micro Four Thirds mirrorless cameras and provides a 24-400mm equivalent focal length range.
·
·Three aspherical elements, one Super HR (high refractive index) elements, and two HR elements are featured in the optical design to limit spherical aberrations for improved sharpness with reduced distortion. Additionally, two Super ED (extra-low dispersion) elements and two ED elements are also used to control chromatic aberrations and color fringing for greater clarity and colour fidelity.
·
·A ZERO (Zuiko Extra-Low Reflection Optical) coating has been applied to individual elements to minimize lens flare and ghosting for improved contrast and color fidelity when working in strong lighting conditions.
·
·Movie & Still Compatible (MSC) autofocus system benefits both photo and video applications due to its smooth, quiet, and fast performance.
·
·Minimum focusing distance of 8.7" at the wide-angle end, and a 3.9" working distance, offers a 0.46x maximum magnification to suit working with close-up subjects.
·

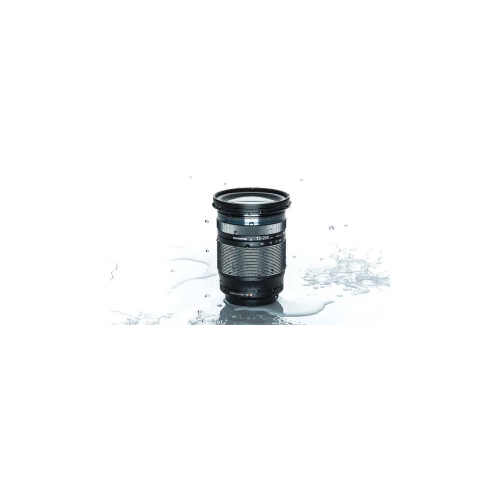

·Weather-sealed construction guards the lens against dust and moisture for working in harsh environments.
·
·Rounded seven-blade diaphragm contributes to a pleasing bokeh quality.
· SPECIFICATIONSFocal Length 12 to 200mm (35mm Equivalent Focal Length: 24 to 400mm)
Maximum Aperture f/3.5 to 6.3
Minimum Aperture Not Specified by Manufacturer
Lens Mount Micro Four Thirds
Format Compatibility Micro Four Thirds
Maximum Magnification 0.44x
Minimum Focus Distance 8.66" / 22 cm
Optical Design 16 Elements in 11 Groups
Diaphragm Blades 7, Rounded
Focus Type Autofocus
Image Stabilization None
Filter Size 72 mm (Front)
Dimensions (ø x L) 3.1 x 3.9" / 77.5 x 99.7 mm
Weight 1 lb / 455 g
Package Weight 1.585 lb
Box Dimensions (LxWxH) 7.3 x 4.55 x 4.55"
