AT A GLANCE
·Micro Four Thirds System
·
·14-28mm (35mm Equivalent)
·
·Aperture Range: f/2.8 to f/22
·
·3 Aspherical, 1 DSA, 4 ED, 2 HR Elements
·
·Anti-Reflection ZERO Coating
·
·High-Speed Imager AF with MSC
·
·Manual Focus Mechanism
·
·L-Fn Button for Settings Control
·
·Dust, Splash, and Freezeproof Design
·
·Rounded 7-Blade Diaphragm

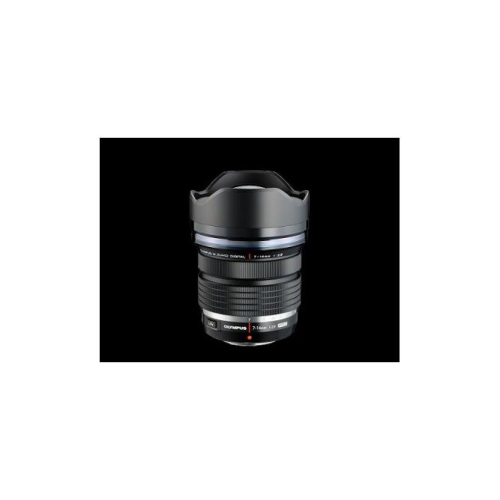

·DESCRIPTIONA versatile wide-angle zoom for Micro Four Thirds mirrorless cameras, the M.ZUIKO Digital ED 7-14mm f/2.8 PRO Lens from Olympus is a 14-28mm equivalent lens featuring a constant f/2.8 maximum aperture for consistent performance throughout the zoom range. Various aspherical, extra-low dispersion, and high-refractive index elements are incorporated within the design, and help to minimize chromatic aberrations and distortions for increased clarity and sharpness. Additionally, a ZERO coating has been applied to elements to control flare and ghosting for improved contrast and colour fidelity. A weather-resistant design benefits handling in trying conditions while an L-Fn button offers lens-based control over various settings. As a fast, high-performance wide-angle zoom, this Micro Four Thirds lens pairs an optimized optical layout with refined physical details to excel in a variety of working conditions.Complementing the imaging traits is a high-speed imager AF system that provides fast, smooth, and quiet focusing and the Movie and Still Image Compatible (MSC) designation also indicates this lens' suitability for use with fast-moving subjects and video applications. A manual focus mechanism can also be utilized for selective control over focus, which is accented by a rounded seven-blade diaphragm for more aesthetic out-of-focus regions.
·This wide-angle 7-14mm zoom lens offers a 14-28mm equivalent focal length range for Micro Four Thirds digital cameras.
·
·Constant f/2.8 maximum aperture maintains consistent performance throughout the zoom range and benefits working in difficult lighting situations.
·
·The lens construction integrates two aspherical ED (extra-low dispersion) elements, one DSA (Dual Super Aspherical) element, one aspherical element, three Super ED elements, one ED element, and two HR (high-refractive index) elements into its design to minimize aberrations, distortion, and colour fringing while also contributing to overall image sharpness, clarity, and colour fidelity.
·
·ZERO coating helps to suppress lens flare and ghosting for increased contrast and more accurate colour rendering.
·
·Dust, splash, and freezeproof construction ensures this lens' performance in inclement conditions and harsh environments.
·
·A customizable L-Fn button can be assigned to control one of 27 different settings for intuitive handling and quick re-calling of assistive features.
·
·High-speed imager AF linear motor drive system, with MSC (Movie and Still Image Compatible) support, provides fast, smooth, and quiet focusing performance. A manual focus mechanism can also be employed for refined, critical focus control.
·
·Built-in petal-type lens hood helps to alleviate stray light from causing flare and also adds some protection from accidental impacts to the front element.
·
·Rounded seven-blade diaphragm helps to produce and aesthetic out-of-focus quality when working with selective focus techniques
·SPECIFICATIONSFocal Length 7 - 14mm
Comparable 35mm Focal Length 14 - 28 mm
Aperture Maximum: f/2.8 Minimum: f/22
Camera Mount Type Micro Four Thirds
Format Compatibility Micro Four Thirds
Angle of View 114° - 75°
Minimum Focus Distance 7.87" (20 cm)
Magnification 0.11x
Elements/Groups 14/11
Diaphragm Blades 7, Rounded
Autofocus Yes
Filter Thread None
Dimensions (DxL) Approx. 3.11 x 4.17" (78.9 x 105.8 mm)
Weight 1.17 lb (534 g)
Package Weight 2.0 lb
Box Dimensions (LxWxH) 8.1 x 5.6 x 5.5"
