AT A GLANCE

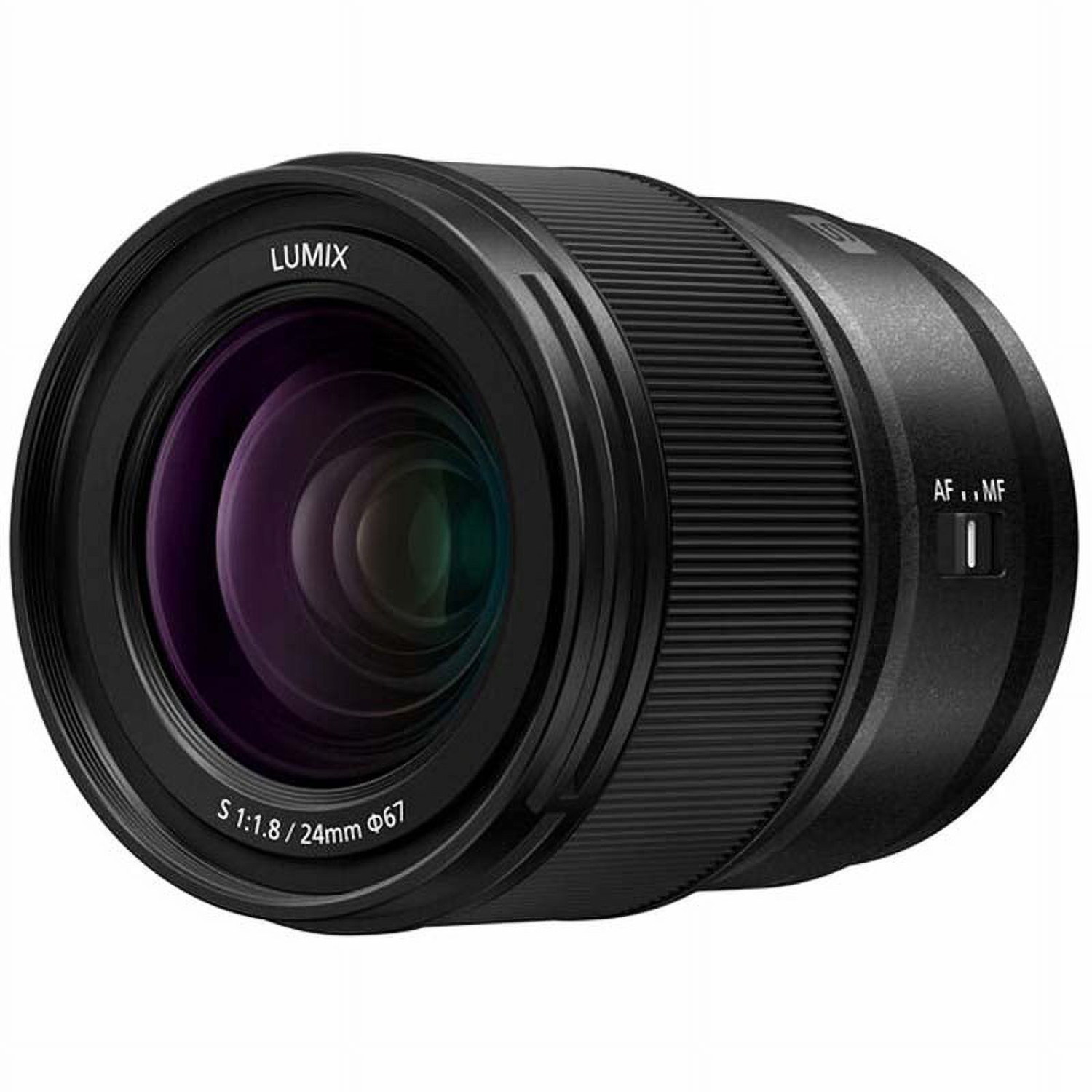

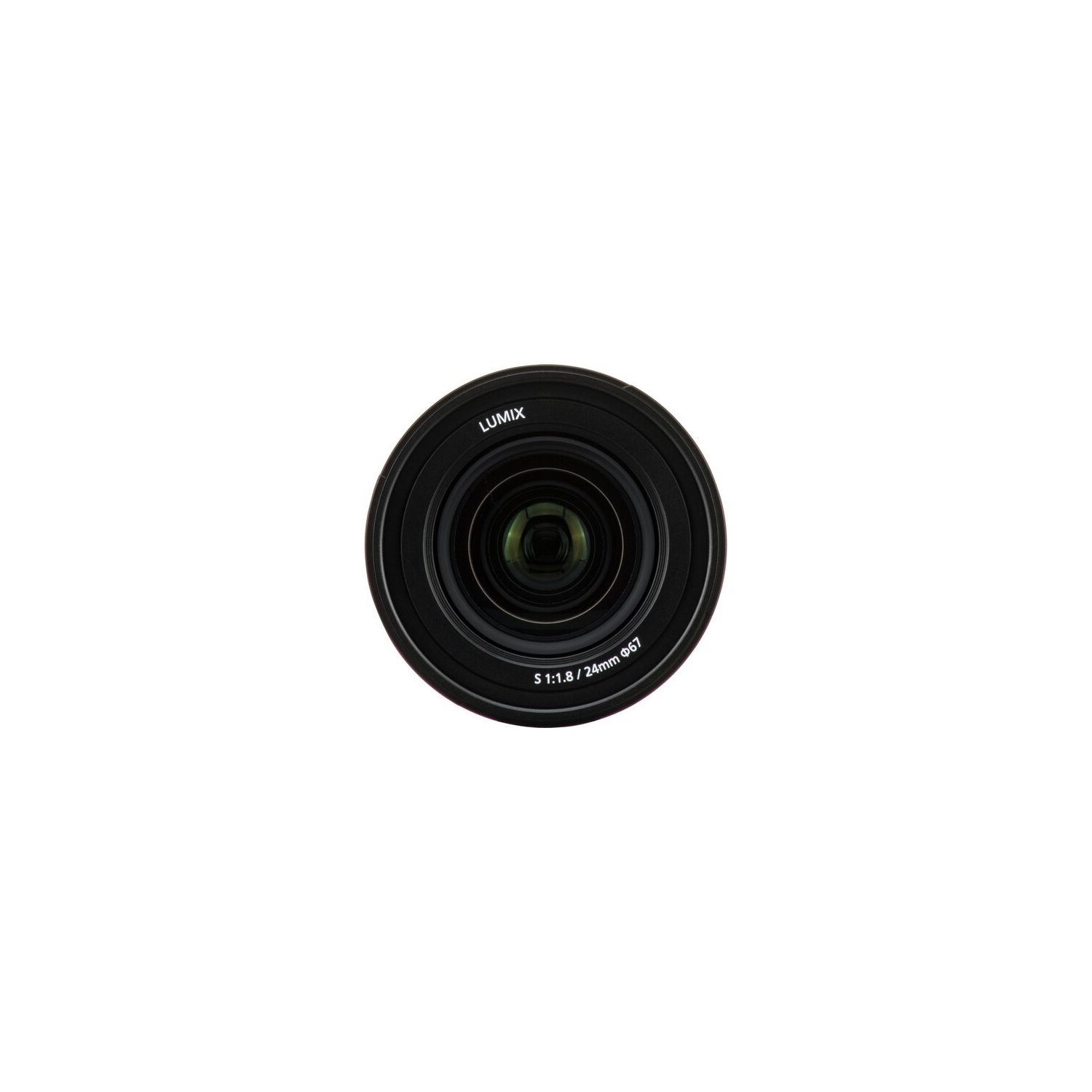

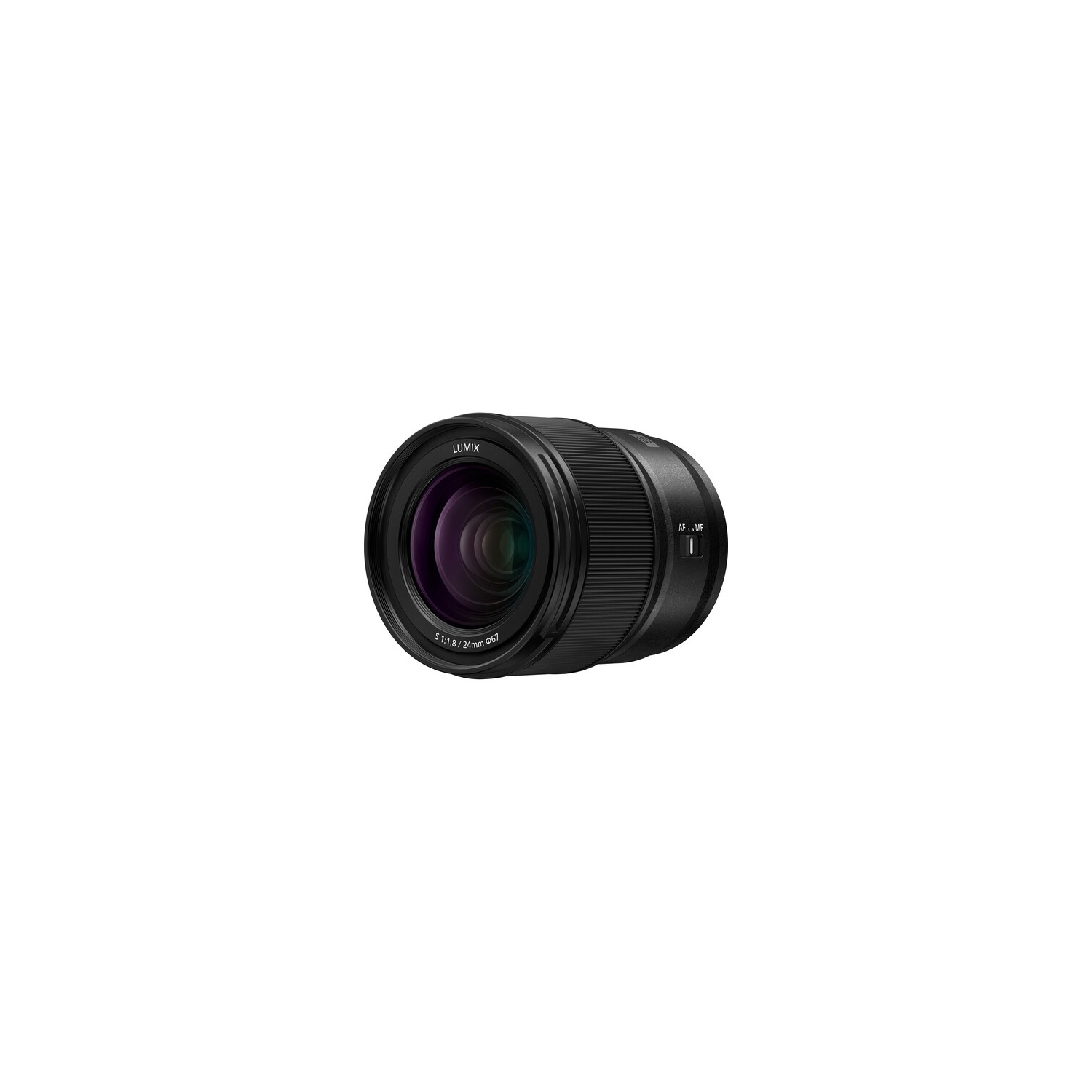

·The LUMIX S 24mm F1.8 is comprised of twelve lens elements in eleven groups including three aspherical lenses, three ED (Extra-Low Dispersion) lenses and one UED (Ultra Extra-Low Dispersion) lens. The use of three aspherical lenses realizes both expressive performance and beautiful bokeh, which are common denominators to the entire F1.8 series. It is suitable for versatile situations including landscapes to snapshots taking advantage of the wide angle of view. The ED lenses and the UED lens effectively suppress chromatic aberration. The LUMIX S 24mm F1.8 is capable of smooth, silent operation to work with the camera’s high-speed, high-precision contrast AF system with the sensor drive at max.240 fps. For the non-linear setting, focus is shifted with a variable amount according to the rotation speed of the focus ring while focus is shifted with a designated amount according to the rotational quantum of the focus ring for the linear setting. Sensitivity (the amount of focus shift per rotational quantum) can be selected from 90 to 360 degrees by 30 degrees to enable intended focus operation. The LUMIX S 24mm F1.8 also excels in video recording performance with a mechanism that suppresses focus breathing, which was a fatal problem of all interchangeable lenses designed for still image photography. Together with a micro-step aperture control for smooth exposure change, professional quality video can be recorded.With its approximately 310g compact size and light weight, the LUMIX S 24mm F1.8 is incredibly mobile to complement the S5, LUMIX’s smallest full-frame model. The rugged dust/splash-resistant* design withstands use under harsh conditions even at 10 degrees below zero. The filter diameter is 67 mm, with a 9-blade circular aperture diaphragm.The LUMIX S 24mm F1.8 is comprised of twelve lens elements in eleven groups including three aspherical lenses, three ED (Extra-Low Dispersion) lenses and one UED (Ultra Extra-Low Dispersion) lens. The use of three aspherical lenses realizes both expressive performance and beautiful bokeh, which are common denominators to the entire F1.8 series. It is suitable for versatile situations including landscapes to snapshots taking advantage of the wide angle of view. The ED lenses and the UED lens effectively suppress chromatic aberration. The LUMIX S 24mm F1.8 is capable of smooth, silent operation to work with the camera’s high-speed, high-precision contrast AF system with the sensor drive at max.240 fps. For the non-linear setting, focus is shifted with a variable amount according to the rotation speed of the focus ring while focus is shifted with a designated amount according to the rotational quantum of the focus ring for the linear setting. Sensitivity (the amount of focus shift per rotational quantum) can be selected from 90 to 360 degrees by 30 degrees to enable intended focus operation. The LUMIX S 24mm F1.8 also excels in video recording performance with a mechanism that suppresses focus breathing, which was a fatal problem of all interchangeable lenses designed for still image photography. Together with a micro-step aperture control for smooth exposure change, professional quality video can be recorded.With its approximately 310g compact size and light weight, the LUMIX S 24mm F1.8 is incredibly mobile to complement the S5, LUMIX’s smallest full-frame model. The rugged dust/splash-resistant* design withstands use under harsh conditions even at 10 degrees below zero. The filter diameter is 67 mm, with a 9-blade circular aperture diaphragm.
·
·Focal Length 24mm
·
·Maximum Aperture f/1.8
·
·Minimum Aperture f/16
·
·Lens Mount Leica L
·
·Format Compatibility Full-Frame
·
·Angle of View 84°
·
·Minimum Focus Distance 9.4" / 24 cm
·
·Maximum Magnification 0.15x
·
·Optical Design 12 Elements in 11 Groups
·
·Diaphragm Blades 9, Rounded
·
·Focus Type Autofocus
·
·Image Stabilization No
·
·Filter Size 67 mm (Front)
·
·Dimensions (ø x L)2.9 x 3.2" / 73.6 x 82 mm
·
·Weight 10.9 oz / 310 g
·
