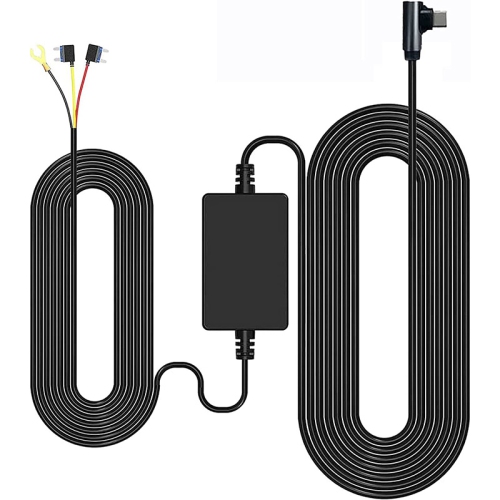

REDTIGER F7N Dash Cam Hardwire Kit, 21.3ft Type-C Port Hardwire Kit for Dash Cam

The REDTIGER F7N Dash Cam Hardwire Kit compatible with TYPE C F7N Series Dash Cams.

Warm tips:

1. Please make sure the ACC and BAT is connected correctly.

2. Please feel free to reach us if any professional help in need.

3. Please use the dedicated hardwire kit for the REDTIGER F7N, Because the other brands of hardwire kits are not available for our dash cams.

-Instructions for installation

1. Stop the engine.

2. Open the fuse box.

3. Use a power detector to detect the constant power and ACC power (emergency power). *note: Use an ACC power supply of 15A to 25A. Use a constant power supply below 30A.

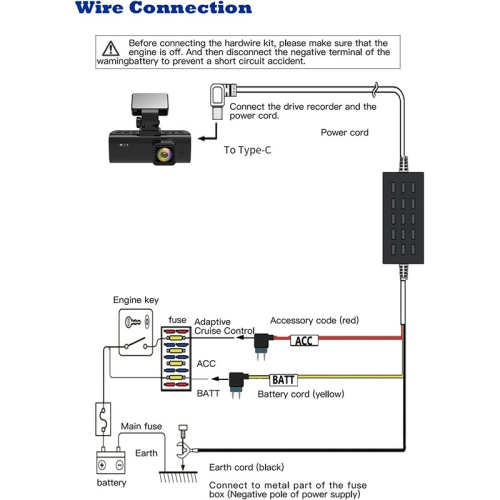

4. Connect the yellow fuse to the constant power source, the red fuse to the ACC power source, and the ground terminal (black wire) to the metal part of the body.

The B+ (yellow)

The yellow cable should be connected to the fuse of the constant power supply in the car fuse box. If you are looking for a constant power supply in the fuse box: Use a voltage tester to check the fuse to ensure it still have electricity even if the car engine is off.

The ACC (red)

Connect the red cable supply power only when the car engine starts. Testing method : The tester bulb will light when the engine if on and won't light when the engine is off.

The Ground (black)

This black cable is connected to the metal parts of the vehicle. There are screw nails and metal parts near the fuse boxes in many cars. Connect the black cable to the screw or metal part.
