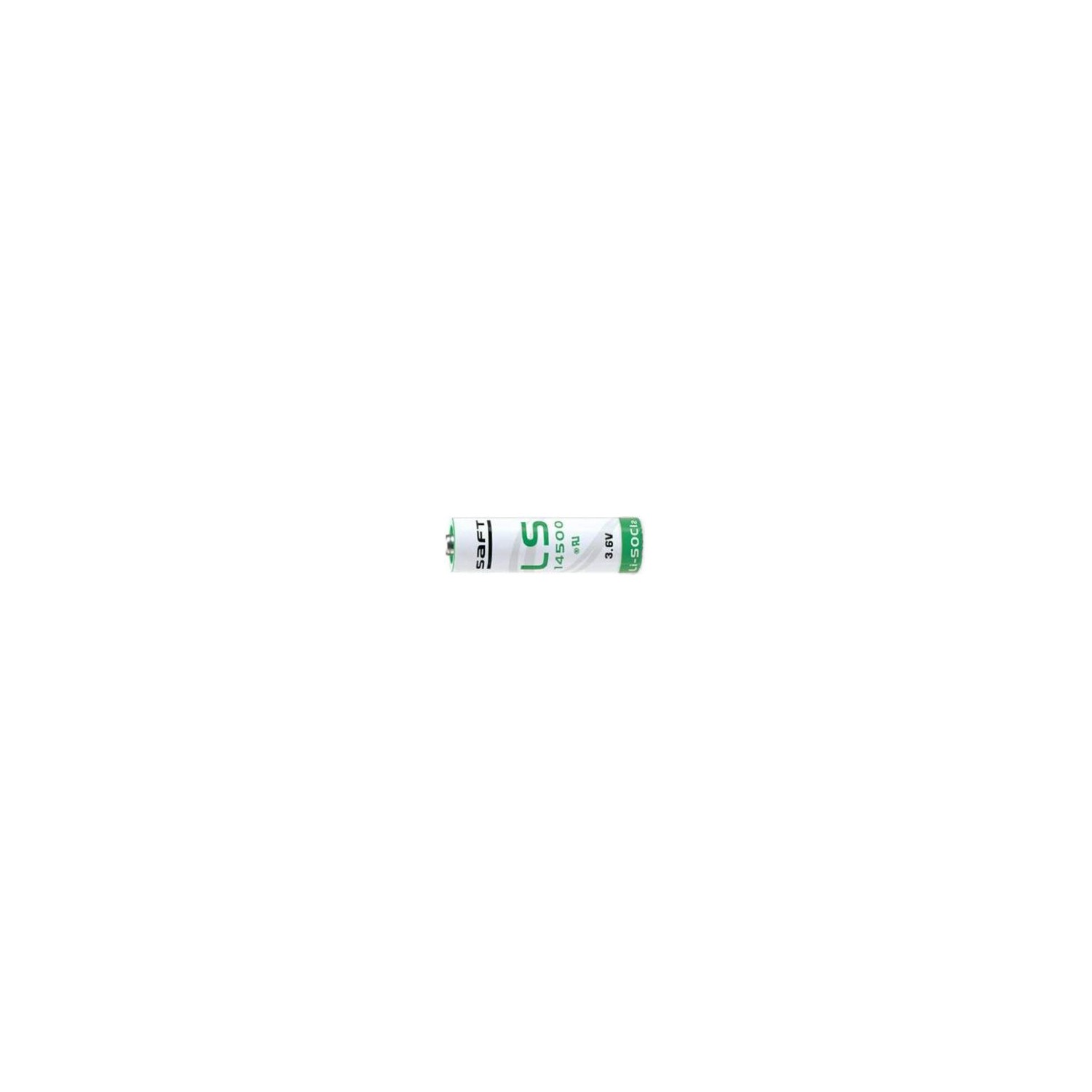

SAFT LS14500 AA 3.6 Volt Lithium Battery (2600 mAh)

Model Number: LS14500
Web Code: 12243179

Overview

SAFT LS14500 AA 3.6 Volt Lithium Battery (2600 mAh).
$12.79
Available online only
Most Marketplace items ship from sellers within 2 business days. Delivery times vary by location.

Specifications:

Voltage: 3.6V

Capacity: 2600mAh

Chemistry: Lithium Thionyl Chloride (Li-SOCI2)

Brand: Saft

Concentric (“bobbin”) electrodes

Hermetic glass-to-metal sealing.

Non-flammable electrolyte.

UL Approved --- BBCV2.MH30127

Included Qty: 1

Electrical characteristics

Nominal capacity 2.6Ah (2600 mAh)

Open circuit voltage (at +20C +68F) 3.66V

Nominal voltage (at 1mA +20C +68F) 3.6V

Pulse capability: Typically up to 200 mA

Diameter(max): 14.5mm (0.55 in)

Height (max): 50.5mm (2 in)

Typical weight: 19g (0.622oz)

Key Features:

High operating voltage, stable during most of the application lifetime

Some of the highest nominal capacities on the market today

Excellent reliability over extended operating life

Operating Temperature Range: -60°C/+85°C (-76°F/+185°F)

Low self-discharge rate (less than 1% after 1 year of storage at + 20°C)

Excellent resistance to humid environments

Low magnetic signature

Good resistance to passivation

Non-flammable (and non-pressurized at ambient temperature) inorganic (but corrosive) electrolyte

Less than 1% capacity loss during storage at ambient temperature before use

½ AA, AA and A cell models non-restricted to transport

Up to 25 years of mass production experience

Excellent safety records

Compliant with IEC 86-4 safety standard and EN 50020 intrinsic safety standard

Compliance with the European directive RoHS

Equivalent Batteries

Tadiran TL-5903, Tadiran TL-2100, Tadiran TL-4903, Tadiran TL-5104,

Saft LS-14500, Saft LS-14500C,

Sonnenschein SL-360/S, Sonnenschein SL-760/S

Maxell ER6S-TC, Minamoto ER14505, Xeno XL-060F, XL-060F, SB-AA11, PT-2100

LAA, ER6, VL-AA, TL5104, TL2100, T06/41, T06/51, LS6, 3B940, LTC17C, LTC-17C, ER6AA, ER6H, LST14500, Taclane Battery

Main applications:

Radio communication and other military applications

Alarms and security systems

Memory Backup

Beacons and emergency location transmitters

high tech dive computers

GPS

Metering systems

Bar-code scanners,

Night vision equipment

Sonobuoys

LED lighting applications

This battery fits for Wildlife Materials 2000 Hour Changeable Battery Collar.

Collar Model #s 2190, 3190, or 3190/3280

Also it can be used in all Supra and Strile Collars. Does not fit Supra Lite collars

Others

Lithium Thionyl Chloride has the highest energy density of any practical Lithium battery chemistry, three times greater than Alkaline (Zinc Manganese Dioxide) batteries. It also has the widest operating temperature range of -76F to + 185 F. Self discharge is low at less than 1% per annum at +68F, giving an effective shelf life of 10 years

Warning:

This battery is not rechargeable. Do not try to recharge.

The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated

Please discharge the battery few minutes with 100mA,if the battery voltage is lower than your need or consult ABLE.

Don't use different models of battery in series.

Soldering the tab should be finished in few seconds.

Do not use if the battery casing was mangled

Battery Shape
LS14500
Capacity
2600 mAh
Voltage
3.6 V
Battery Type
1 x LS14500
Rechargeable
No
