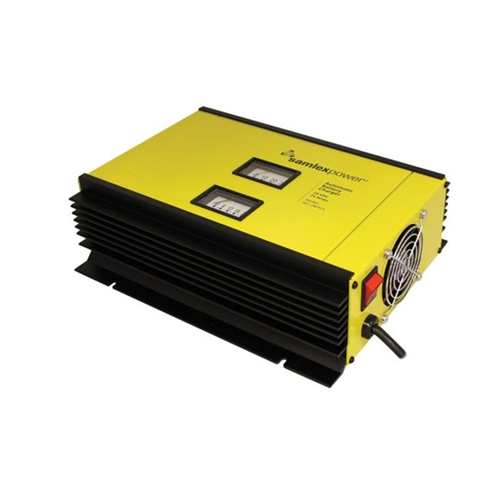

Samlex SEC-2425UL 25 Amp Battery Charger - 24 Volt

This advanced fully automatic three-stage 25 Amp battery charger is ideal for charging all types of 24 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V 60 Hz or 230 V 50 Hz AC source. By means of a DIP switch setting conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload short-circuit reverse polarity and thermal overload protection. The unit allows charging of up-to 2 separate battery banks. Switch mode technology for high efficiency lightweight and quiet operation. Automatic operation for ALL Lead Acid Batteries Flooded AGM or Gel Cell. Can charge 2 banks of batteries simultaneously no isolator necessary. Can be used as a power supply or DC UPS when used in conjunction with a battery. User Configurable AC Input voltage 120 or 230 VAC 50 / 60 Hz. User Selectable ( by DIP Switch) for 2 or 3 stage rapid and safe charging of standalone and loaded Lead Acid Batteries. Half Power Mode reduces maximum charging current to half the rated capacity allows for safe charging of lower capacity batteries. Voltmeter and Ammeter for monitoring. Fan cooled based on output current. Protections: Short circuit overload reverse battery connection and over temperature. Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensively. Input: 120 VAC or 230 VAC. Output: 24 VDC. Amps: 25. Remote Control: 900-RC. Dimensions: 13.03 x 9.6 x 3.82. Safety Listed to UL Standard UL-1564 EMI Compliant to FCC Part 15(B) Class B. Applications:. Test bench. Automotive. Marine. Communications sites. Battery back-up systems. Hobby.
