EW-DP delivers an industry leading audio workflow that only advanced digital technology and UHF transmission can offer. This fully digital UHF wireless microphone system features an all-new portable design and unmatched audio quality, purpose-built for filmmakers, content creators, and broadcasters.
At the heart of EW-DP is a compact digital receiver that provides an intuitive user experience for all. Bluetooth synchronization and system control via our Smart Assist app help you save time and energy on set. A front facing OLED display allows for easy menu navigation and Smart Notifications help to troubleshoot your system when you encounter a challenge. Magnetic and stackable mounting configurations seamlessly integrate the receiver into your camera build while multiple powering options are ready to tackle long days on location.
Choose between the ME 2 omnidirectional lavalier which delivers clear, intelligible dialog capture or the ME 4 cardioid lavalier which helps to isolate your speech in louder environments. Omnidirectional lavaliers tend to have a more natural sound and are less susceptible to wind noise while cardioid lavaliers reject unwanted ambience.
Capture your full creative vision with EW-DP. Setup simplicity and digital clarity put time on your side so you can focus on what matters most. After all, production has enough challenges; sound doesn't need to be one of them.
Feature Overview
* Fully digital UHF system designed for filmmaking & video applications
* Industry leading 134 dB dynamic range for distortion free transmission
* Integrated Bluetooth for synchronization and control
* Intelligent battery management provides operating time (hours:minutes)
* Extended battery life: up to 12h on transmitter, 7h on receiver
* Magnetic, stackable, and versatile mounting options
* Up to 56 MHz bandwidth for flexibility in any RF environment
* Exceptionally low latency (1.9 ms)
* Plug-on transmitter: XLR & 3.5 mm inputs, +48V & recording via microSD
* External charging and powering via USB-C (receiver only)
* Smart Assist app for monitor & control
In the Box:

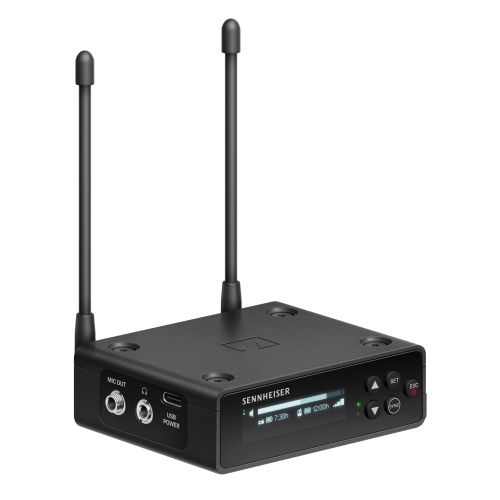

- EW-DP EK digital portable single channel receiver
- EW-D SK digital bodypack transmitter

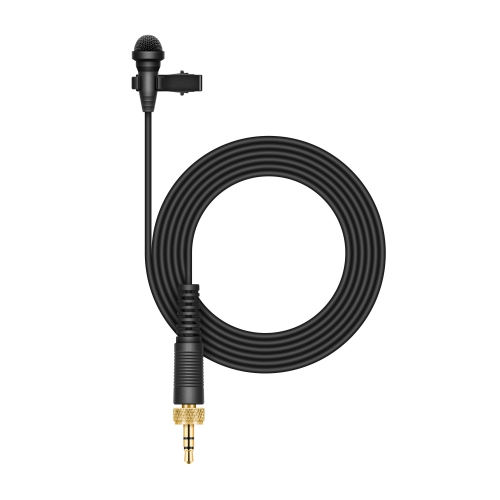

- ME 2 omnidirectional lavalier microphone

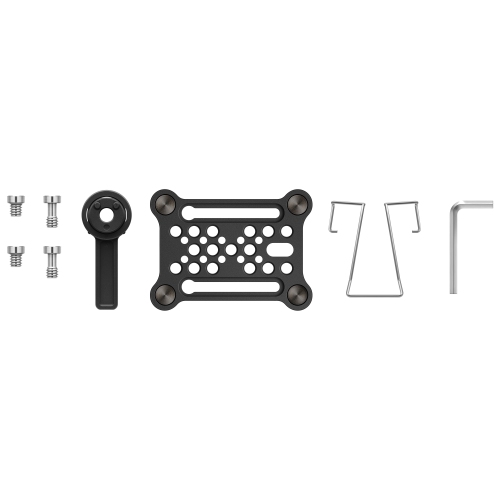

- Mounting kit (cheese plate, cold shoe, belt clip & screws)
- BA 70 li-ion battery & (2) AA battery
- Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
- Locking 3.5 mm TRS plug to XLR plug cable
- USB-C charging cable
Specifications
System
Availabe Frequency ranges:
Q1-6 (470.2 - 526 MHz)
R1-6 (520 - 576 MHz)
R4-9 (552 - 607.8 MHz)
Bluetooth Low Energy (BLE) frequency range: 2402 - 2480 MHz
Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio THD: < = -60 dB for 1 kHz @ -3 dBfs input level
Dynamic range: 134 dB
System latency: 1.9 ms
Operating temperature: -10°C - +55°C (14°F - 131°F)
Relative humidity: 5 - 95% (non-condensing)
EW-DP EK
Input voltage: ~ 1.8 - 4.35 V
Input current: Typ. < 250 mA / Max. < 400 mA (BA 70)
Transmit power (radiated): BLE: max. 10 mW EIRP
Audio output power: < 2 dBV max. (high level) / < 4dBU max. (high level)
Headphone Output: < 50 mW into 16 Ohms
Dimensions: 86 x 67 x 28 mm (3.39" x 2.64" x 1.1")
Weight (without antennas and power supply): approx. 140g
ME 2 (Lavalier Microphone)
Transducer principle: pre-polarized condensor microphone
Pick-up pattern: omni-directional
Sensitivity (free field, no load) (1 kHz): 17 mV/Pa
Max. SPL at 1 kHz: 130 dB
Frequency response: 50 to 18,000 Hz
Equivalent noise level, A-weighted: 32 dB
Connector: 3.5 mm jack
Cable length: approx. 1.60 m (62.99")
Supply voltage: 7.5 V
