Focus less on the wireless and more on the audio. Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease. Multiple hardware and software options create networkable solutions for nearly any stage, while equidistant channel spacing, auto scan, and Bluetooth Low Energy sync automatically coordinate and set frequencies with the push of a button. Monitor your devices from a distance - even from your pocket - with tools like Wireless Systems Manager and Smart Assist app. The future of wireless is here.

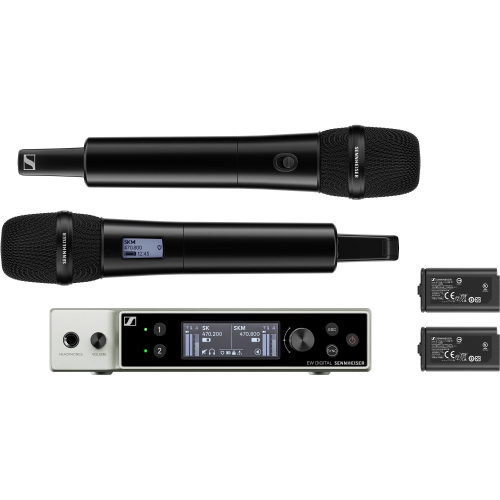

Perfect for presenters and singers. This set consists of 2 x EW-DX SKM-S (handheld with mute switch), 2 x MMD 835 capsule (cardioid, dynamic), 1 x EW-DX EM 2 rackmount receiver (2 channels) and 2 x BA 70 rechargeable batteries.

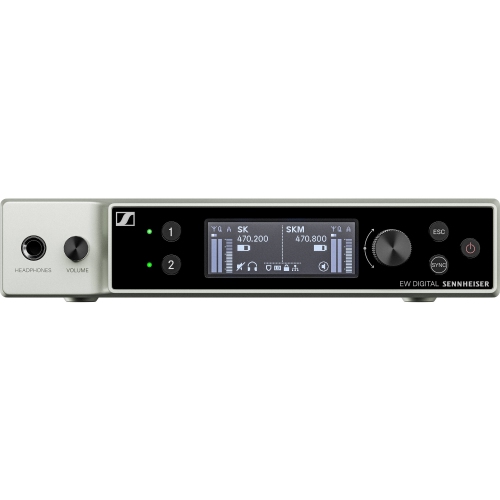

Features - EW-DX EM 2 (Rack Receiver)
* 2 channel half rack (9.5")
* Up to 88 MHz switching bandwidth
* PoE IEEE 802.3af Class 3
* Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
* Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
* Clear and easy focused user interface with OLED display
* Ethernet connectivity (IPv4 and IPv6)
* Secure AES 256 encryption
* External PSU 12V/1A
* All-metal housing
Specifications - EW-DX EM 2
Input Voltage: 11 - 13 V or PoE IEEE 802.3af Class 0 (CAT5e or higher)
Input Current: < 1 A
Transmit Power (radiated): BLE: max. 10 mW EIRP
Audio Output Power: 18 dBu max.
Headphone Output: 2x 70 mW @ 32 Ω
Dimensions: 212 x 44 x 189 mm
Weight: approx. 1000 g (2.2 lbs) (without antennas and power supply)

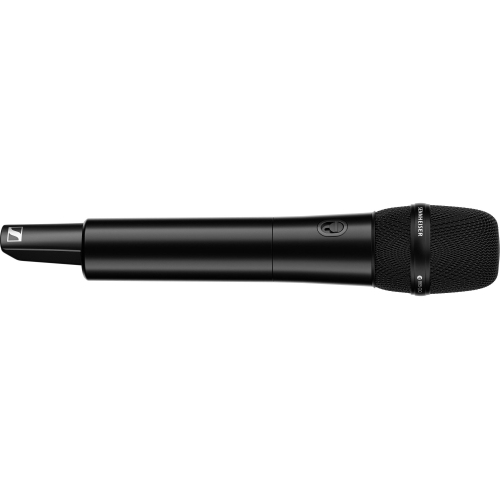

Features - EW-DX SKM-S (Handheld Transmitter)
* 10mW RF power with up to 100m/328ft working range
* Charging contacts for in-device charging with CHG 70N
* Persistent eInk display - parameters visible on screen even when device is not powered on
* Programmable mute switch on EW-DX SKM-S - customize the device depending on your professional needs
* Function buttons - control all the transmitter settings directly from handheld microphone
* Extended runtime with lithium-ion batteries - up to 12 hours operation time
* Standard capsule interface - compatible with a wide range of Sennheiser and Neumann capsules
* Mic input trim control
* Metal housing
Specifications - EW-DX SKM-S
Input voltage: 2.0 - 4.35 V
Input current: < 300 mA
Power supply: 2 AA batteries 1.5 V
Occupied bandwidth: 200 kHz
Dimensions: 50 x 268 mm
Weight (without batteries): approx. 304 g
Included
- EW-DX EM 2 rack receiver
- 2 EW-DX SKM-S handheld transmitters
- 2 MMD 835 microphone modules
- 2 MZQ 1 microphone clamps
- 2 rod antennas
- Power supply with country adapters
- GA 3 rackmount set
- 4 rubber feet
- 2 BA 70 rechargeable battery packs
- Quick guide
- Safety guide
- Manufacturer declaration sheet
