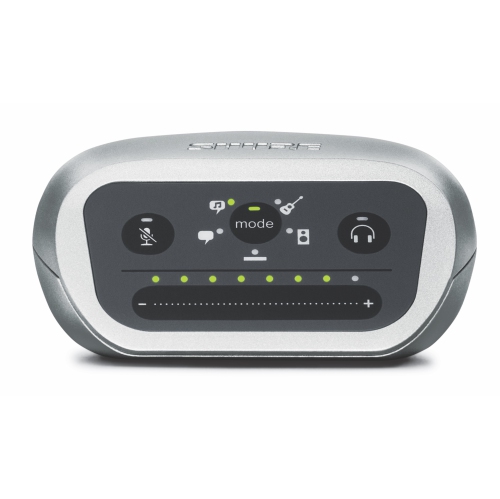

The compact MOTIV MVi connects your microphone or instrument to your computer or mobile device to create a portable recording studio, wherever and whenever you need it. For maximum flexibility, the unit connects to any PC, Mac or iOS device with Lightning Connector, as well as most Android devices (contact our expert team for full compatibility details), giving you absolute control while on the move. This robust all-metal unit features a combined XLR and 6.3 mm input to enable use with both microphones and instruments. When connected to a laptop/PC it also provides the phantom power required to operate condenser microphones.
The unit has five preset DSP modes (speech, singing, flat, acoustic instrument and loud) which configure audio settings so you can start recording immediately. The built-in touch panel also provides control for gain, mute, and headphone volume. If you want to fine tune your recording for a specific purpose, you can adapt the limiter, compressor and five band EQ manually to find a unique sound.
Features:
* 5 DSP preset modes (speech, singing, flat, acoustic instrument, loud) for EQ, compression, and limiter settings
* Touch panel provides control for gain, mute, and headphone volume
* JFET Class A buffered instrument preamplifier input for exceptional tone and clarity
* Combined XLR microphone and 6.3 mm instrument input
* Supplies phantom power for use with condenser microphones
* Record, edit, and share recordings from the free ShurePlus MOTIV Mobile Recording App for iOS
* All-metal, compact construction withstands demanding conditions
* USB cables included (Lightning cable not included)
* Compatible with iOS, Android, Mac and PC
In the Box:
1 - MOTIV MVi Digital Audio Interface
1 - USB-A-to-MicroUSB Cable
1 - USB-C-to-MicroUSB Cable
Specifications
MFi Certified: Yes
DSP Modes (Presets): Speech/Singing/Acoustic/Loud/Flat
Input: Combination XLR and 6.35 mm (1/4") TRS
Input Impedance: 1/4 inch instrument input>1 M
Bit Depth: 16-bit/24-bit
Sampling Rate: 44.1/48 kHz
Frequency Response: 20 Hz to 20,000 Hz
Adjustable Gain Range
3-pin XLR: 0 to +36 dB
6.35 mm (1/4") TRS: +9 dB
Maximum Input Level:
3-pin XLR: 0 dBV
6.35 mm (1/4") TRS: +9 dBV
Headphone Output: 3.5 mm (1/8)
Power Requirements: Powered through USB or Lightning connector
Phantom Power: +48V USB/+12V iOS
Mute Switch Attenuation: Yes
Housing: all metal construction
Net Weight: 310.0 g (10.93oz.)
Dimensions: 42 x 84 x 72 mm (H x W x D)
