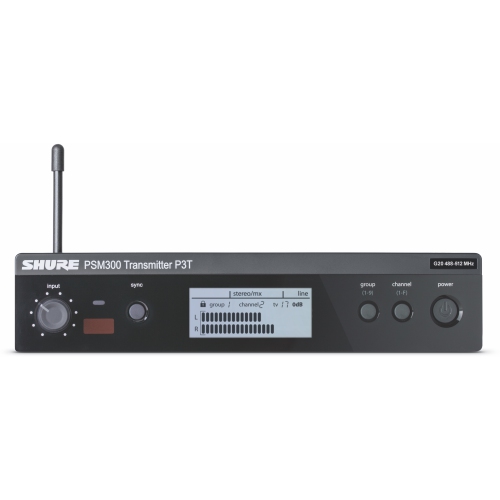

Shure PSM300 P3T Wireless Transmitter (G20)

Dependable wireless transmission and 24-bit digital audio combine to deliver a superior personal monitoring mix for every performance.

Send 2 channels of audio to a bodypack receiver up to 300 feet (90 m) away, with patented Audio Reference Companding to ensure transparent sound quality with no artifacts or dropouts.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Includes

P3T transmitter, rackmount and hardware kits, detachable 1/4 wave antenna, BNC cable, BNC bulkhead adapter, power supply, and user guide.

Features

* Transmitter sends a stereo or mono mix wirelessly to performers onstage

* One-touch IR sync on user-friendly front-panel controls instantly links transmitter to receiver

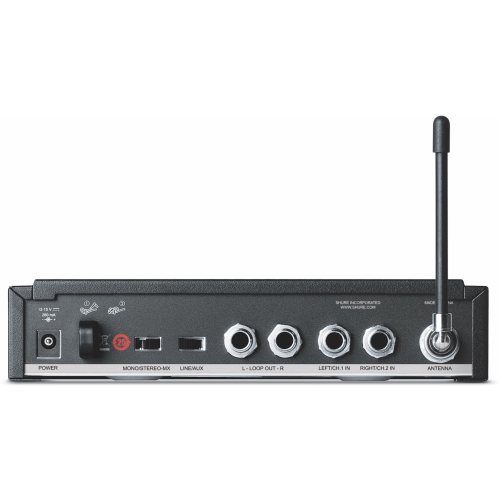

* Rear-panel " (6.3 mm) TRS balanced inputs and loop outputs provide versatile connectivity to audio sources and other P3T units

* Up to 30 mW output power (regionally dependent)

* High-contrast LCD screen with left / right audio output meters

* Selectable line / aux level

Specifications

RF Output Power: 10, 20, 30 mW (Note: varies by region)

RF Output Impedance: 50 (typical)

Power Requirements: 1215 V DC, 260 mA maximum

Audio Input:

- Connector Type: 6.35 mm (1/4") TRS

- Configuration: Electronically balanced

- Impedance: 40 k (actual)

- Nominal Input Level: Switchable, +4 dBu, -10 dBV

- Maximum Input Level: +4 dBu: +22 dBu -10 dBV: +12.2 dBu

- Pin Assignments: Tip=hot, Ring=cold, Sleeve=ground

- Phantom Power Protection: Up to 60 V DC

Audio Output:

- Connector Types: 6.35 mm (1/4") TRS

- Configuration: Electronically balanced

- Impedance: Connected directly to inputs

- Net Weight: 783 g (27.6oz.)

- Dimensions: 43 198 172 mm (1.7 7.8 6.8 in.), H W D
