PSM[reg]300 Stereo Personal Monitor Systems deliver reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts.
Easy to setup and operate, PSM 300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume and use MixMode[reg] technology or stereo mode to create a personal mix from two channels of audio.
SE112 Professional Sound Isolating[trade] Earphones provide great sound and durable build quality through a single, dynamic driver. Discrete, secure design includes a fixed, 3.5 mm (1/8) audio cable that can be worn over the ears or hanging down based on preference. Sound Isolating technology blocks up to 37 dB of outside noise. Includes a carrying pouch and fit kit with selection of sleeves for custom fit.
Features
* 24-Bit digital audio provides clear, detailed sound
* Up to 90 dB signal-to-noise ratio
* 24 MHz tuning bandwidth (regionally dependent)
* Exceptionally wide stereo separation
* Up to 15 compatible frequencies per band
* Solid analog RF connection over a 300 ft (90 m) range
Specifications

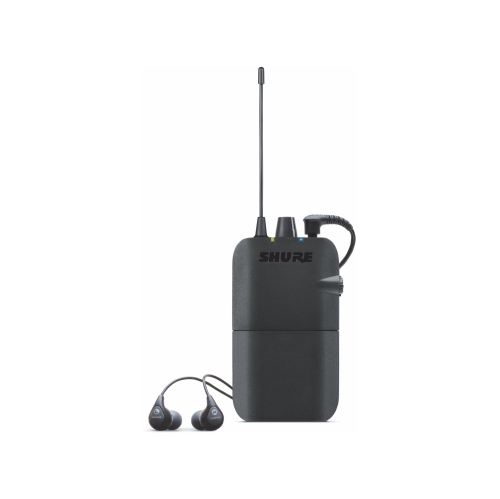

P3R Receiver:
Active RF Sensitivity: 2.2 V
Image Rejection: >90 dB
Adjacent Channel Rejection: >60 dB
Intermodulation Attenuation: >50 dB
Blocking: >60 dB
Audio Output Power: 80 mW (per output)
Minimum Load Impedance: 16[ohm]
Headphone output: 3.5 mm (1/8") stereo
Net Weight: 98 g (3.5 oz.) (without batteries)
Dimension: 1106421mm HWD
Battery Life: 57 hours, AA batteries (continuous use)

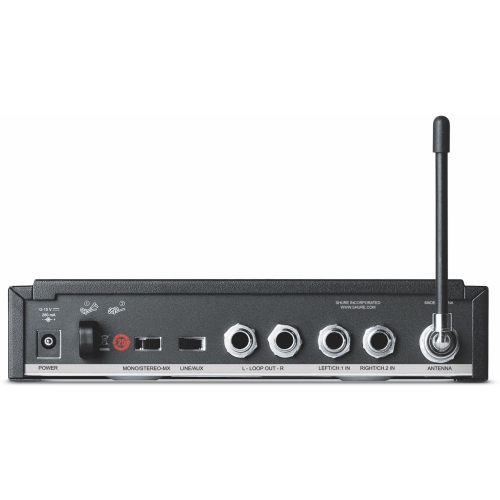

P3T Transmitter:
b]Specifications:
RF Output Power: 10, 20, 30 mW (Note: varies by region)
RF Output Impedance: 50 (typical)
Power Requirements: 1215 V DC, 260 mA maximum
Audio Input:
- Connector Type: 6.35 mm (1/4") TRS
- Configuration: Electronically balanced
- Impedance: 40 k (actual)
- Nominal Input Level: Switchable, +4 dBu, -10 dBV
- Maximum Input Level: +4 dBu: +22 dBu -10 dBV: +12.2 dBu
- Pin Assignments: Tip=hot, Ring=cold, Sleeve=ground
- Phantom Power Protection: Up to 60 V DC
Audio Output:
- Connector Types: 6.35 mm (1/4") TRS
- Configuration: Electronically balanced
- Impedance: Connected directly to inputs
- Net Weight: 783 g (27.6oz.)
- Dimensions: 43 198 172 mm (1.7 7.8 6.8 in.), H W D
Includes
- P3T wireless transmitter
- P3R wireless bodypack receiver and SE112 sound isolating earphones
- Rackmount and hardware kits
- Wave antenna
- BNC bulkhead adapter
- BNC cable, power supply
- 2 AA batteries
- Zipper bag
- User guide
