From lecture halls to houses of worship to performance venues, SLX-D delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring single half-rack and dual full-rack receiver options, handheld and bodypack transmitters and a wide selection of vocal, lavalier, headset and instrument microphone system configurations. Compatible with Shure UHF wireless antenna distribution and remote antenna accessories.

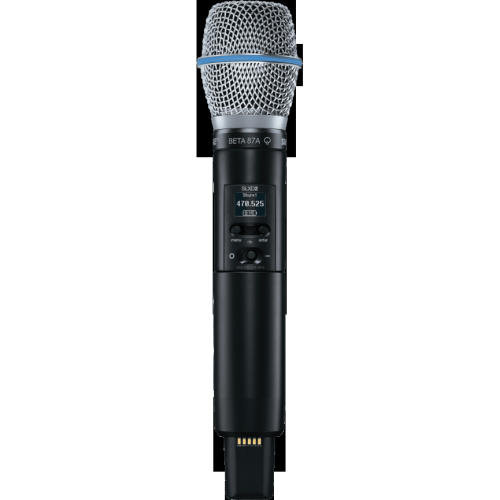

The industry-leading digital wireless technology and design of the SLXD2 easily syncs with a wireless receiver. A variety of interchangeable vocal microphone choices guarantees the right solution for a wide range of applications, from day-long conference to nighttime performances. The BETA87A is designed to capture brighter vocals with sparkling accuracy, and the increased presence will have everyone singing your praises. The supercardioid pattern provides maximum isolation of your voice, giving you the chance to shine and you can get right up on the mic without overwhelming the sound - the electronically controlled low-end roll-off keeps your bass from blasting over the mix.
Features
* Transparent 24-bit digital audio
* Extended 20 Hz to 20 kHz frequency range (microphone dependent)
* 120 dB dynamic range
* Digital predictive switching diversity
* Operating range of 100 m (300 ft.)
* 44 MHz tuning bandwidth
* 32 available channels per frequency band
* Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
* Easy pairing of transmitters and receivers over IR scan and sync
* Up to 8 hours from 2 AA batteries or SB903 Li-Ion rechargeable battery
* Interchangeable microphone capsules
* Rugged metal construction
Specifications
Dimensions: 37.1 x 176 mm (1.46" x 6.938")
Weight: 147 g (5.2 oz)
Housing: Aluminum
Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
AUDIO INPUT
Interchangeable microphone capsules
Configuration: Unbalanced
Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
RF OUTPUT
Antenna Type: Integrated Single-Band Helical
Occupied Bandwidth: < 200 kHz
Modulation Type: Shure Propietary Digital
Power: 1 mW/10 mW
Available Frequency Bands:
SLX-D G58 (470 to 514 MHz)
SLX-D H55 (514 to 558 MHz)
SLX-D J52 (558 to 602 MHz + 614-616 MHz MHz)
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
For use with SLX-D Wireless Systems.
