Overview

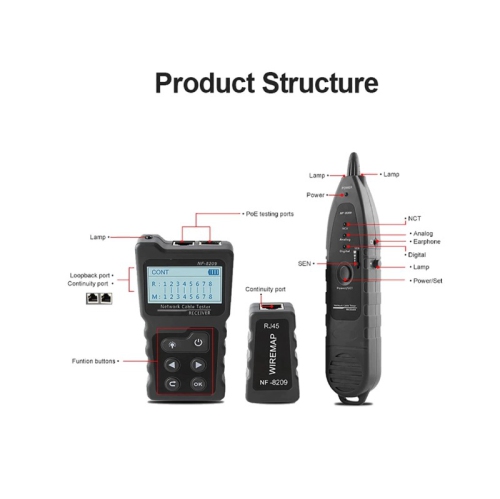

The tester has three modes of digital mode, analog mode and PoE mode for options to track cable easily, which means it is equipped with the most powerful cable location technologies for any work environment. Besides, it includes cable length measurement, cable faults testing, PoE testing, hub blink and NCV function, all of these makes it a must-have tool for cabling engineers.

Speedex Network Cable Tester Wire Tracker Network Tool Scan Cable Wiremap Tester CAT5 CAT6 Cable Length Measurement, PoE Testing, NCV Function

Model: NF8209
Web Code: 15962482
Sold and shipped by | 3.7 seller rating (77 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

What's included:

  • 1 * Emitter, 1 * Receiver, 1 * Remote, 1 * Earphone, 1 * Crocodile Clip Test Line, 2 * Cable Lead, 1 * Carry Bag, 1 * Manual (English)

Features:

Emitter Testing Function: including cable continuity testing, cable length measurement, cable scan, and PoE test.

Three Scan Modes Switchable: it has digital mode, analog and PoE mode for options to track cable.

PSE Type Distinguish: identify the type of PSE, it is AF or AT standard.

POE Test Range: test the information of the DC5~60V standard / non-standard PoE device.

Non-contact Voltage Detecting: the receiver can be used to detect the AC voltage of household electrical wiring.

Illuminate Function: both the emitter and the receiver designed with lamp for auxiliary lighting up the working areas during operation.

Other Settings: setting language(Chinese/English), backlight time(15s/30s/60s/on/off), auto-off time(15mins/30mins/1h/off), contrast adjustment and version checking.

Material: ABS

Package Weight: 500g / 17.64oz

Package Size: 23 * 17 * 5cm / 9.06 * 6.69 * 1.97in

Emitter Parameters & Functions:

LCD Display: 128*64 dot-matrix with backlight

Power Supply: 3 * 1.5V AAA battery (NOT included)

Low Battery Warning: 2.7V

Auto-off Time: 15min/30min/60min/OFF

Voltage Protection: DC48V, 5mA

Max. Working Current: <150mA

Size: 130 * 70 * 28mm / 5.12 * 2.76 * 1.10in

WIREMAP TEST:

Cable Type: CAT5e, CAT6, CAT6a (STP & UTP)

Test with Switch Directly: Yes

Max. Range: 600m

LENGTH TEST:

Cable Type: CAT5e, CAT6, CAT6a (STP & UTP)

Test Range: 2.5~200m

Accuracy: ±1.6m

Breakage Location: Yes

SCAN TEST:

Cable Type: CAT5e, CAT6, CAT6a (STP & UTP)

Max. Signal Voltage: 9±1Vp-p

Frequency: 130KHz

Analog/Digital Mode: Yes

Max. Range: 600m

POE TEST:

Test Range: DC5~60V standard / non-standard PoE switch

Voltage Display: Yes

PSE Type: Standard: IEEE 802.3af/at; Non standard

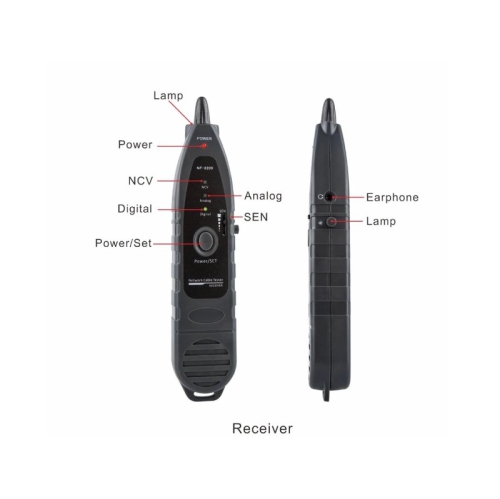

Receiver Parameters:

Sensitivity Adjustable: Yes

AC Voltage Detecting: Yes

Lamp: Yes

Battery Type: 1 * 9V battery (NOT included)

Low Battery Warning: 6±0.5V

Max. Working Current: <100mA

Size: 210 * 43 * 27mm / 8.27 * 1.69 * 1.06in

Remote Parameters:

Wiremap Port: RJ45

Voltage Protection: DC48V, 5mA

Size: 65 * 37 * 23mm / 2.56 * 1.46 * 0.91in

Product Condition
Brand New
Network Cable Type
Ethernet Cable
Colour
Black
