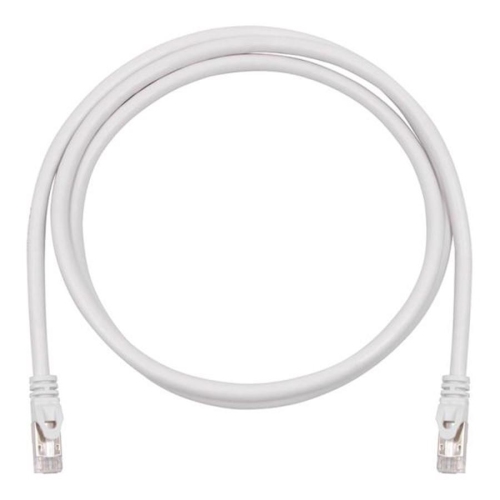

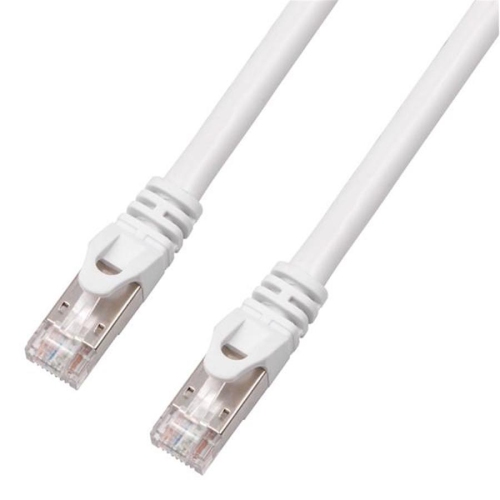

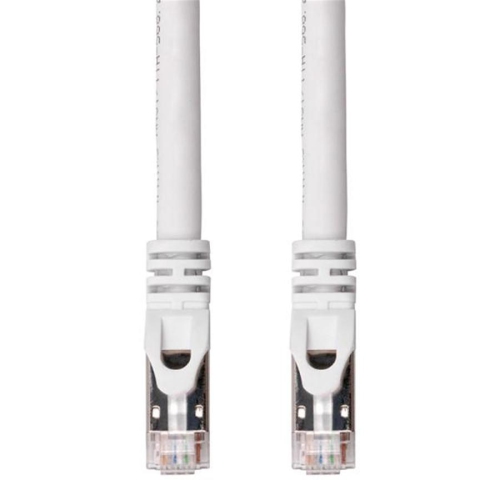

TechCraft - FTP Network Cable with Metal Connectors CAT8, Shielded, 50 Feet Length, White

TechCraft - FTP Network Cable with Metal Connectors CAT8, Shielded, 50 Feet Length, White

Model: C-C8-50W
Web Code: 15914593
Sold and shipped by | 4.0 seller rating (933 reviews)

Sale ends: *

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

TechCraft CAT8 Shielded network cables transmit at up to 40 Gbit/s

Heavy Duty High Speed Cat8 LAN Network RJ45 Cable

24 AWG Pure Copper Conductors

PVC Jacket

Max data rate: Up to 40Gbps

Overview:

- Bandwidth: 2000MHz

- OD: 8.0mm

- Conductor: 24AWG (7/0.20), Stranded Bare Copper

- Approvals: RoHS

- Connector: 50u" Gold Plated RJ45 Connector

Physical Characteristics:

- Cable Type: Cat8 S/FTP

- Connector Type: RJ45

- Wiring Scheme: T568B

- Temperature Rating: -20C - +75C

- Voltage Rating: 30V

- CAT8 S/FTP [1P/24AWG(7*0.20BC)+AL)*4 + BRAID (16*8/0.12AL-MG)

Conductor (4 Twisted Pair):

- Conductor Type: 24AWG (7/0.20), Stranded Bare Copper

- Insulation: FOPE

- Diameter: 1.4+-0.05mm

Connector Type:

- Connector Type: Shielded 8P8C RJ45 Male

- Connector Material: PC

- Contact Material: Copper Alloy with 50um Gold Plating

- Connector Shield: Shielded Nickel Plating

- Hood Material: PVC Molded Boot

Overall Cable:

- Jacket: PVC

- Minimum Average Thickness: 0.6mm

- Outer Diameter: 8.0 +- 0.20mm

Electrical Characteristics:

- Conductor DC Resistance: 9.5Ohm/100m (Maximum)

- Impedance: 100Ohm

- Capacitance: 5600pf/100m

- Propagation Delay: 545ns/100m (Maximum)

- Delay Skew: 45ns/100m (Maximum)

- Pass FLUKE Channel Test (100% Test)

Cable Markings:

25/40GBase-T CATEGORY 8 S/FTP PATCH CABLE 24AWG 4PAIRS ANSI/TIA-568.2-D
