Overview

Low-profile mount hangs a flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants. Tilts to provide optimal viewing angles.

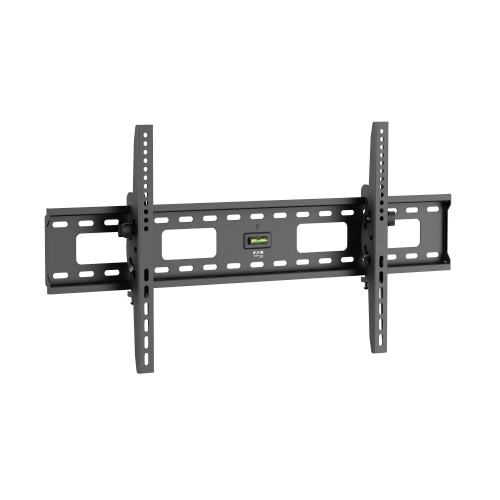

Tripp Lite 45" to 85" Tilting TV Wall Mount - (DWT4585X)

Model: DWT4585X
Web Code: 10433921
Sold and shipped by | 4.0 seller rating (2,140 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Read return policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

What's included:

  • DWT4585X Tilt Wall Mount for 45" to 85" TVs and Monitors, (4) M5 x 14 screws, (4) M6 x 14 screws, (4) M6 x 30 screws, (4) M8 x 20 screws, (4) M8 x 30 screws, (4) Washers, (8) Small spacers, (4) Big spacers, (6) Anchor bolts, (6) Concrete anchors, (6) D6 washers, Owner’s manual

The VESA-compliant DWT4585X Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 45 to 85 inches. A -10° to +10° tilt capability minimizes glare and provides comfortable viewing from multiple angles.

Low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 200 lbs (90.7 kgs). Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm, 600 x 400 mm, 800 x 300 mm and 800 x 400 mm

Product Condition
Brand New
Type
Television Mount
Motion Type
Tilting
Wall Mount Placement Type
Wall
Max Compatible TV Weight
91 kg
Min TV Size
45 in
Max TV Size
85 in
VESA Compliant
Yes
Mounting Bolt Patterns
200x200; 200x300; 200x400; 300x200; 300x300; 300x400; 400x200; 400x300; 400x400; 500x300; 500x400; 600x300; 600x400; 800x300; 800x400
Minimum Distance from Wall
6 cm
Tilt Range (Up/Down)
-10/+10
Colour
Black
Primary Material
Steel
Width
15.75 cm
Height
43.99 cm
Depth
6.3 cm
Width (Inches)
6.2 in
Height (Inches)
17.31 in
Depth (Inches)
2.4 in
Weight
3.06 kg
Other Features
Fits most flat-panel displays from 45 to 85 in., Hangs out of sight for a sleek, professional appearance, -10° to +10° tilt capability for comfortable viewing, Supports up to 200 lbs (90.7 kgs)
