Overview

The UniFi AP Beacon HD is a meshpoint designed for use with any UniFi AP supporting mesh uplinks, including the UniFi Dream Machine. The UniFi AP BeaconHD is the fastest way to extend Wi-Fi coverage and increase throughput in your home and office. The sleek design integrates easily into any environment and plugs in to a standard North American wall outlet.

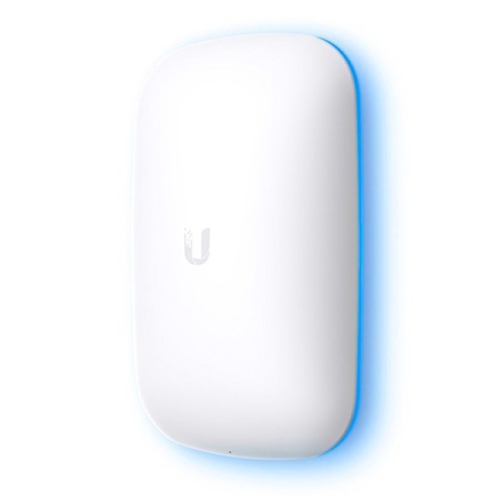

Ubiquiti UniFi BeaconHD Dual Band 802.11ac 4x4 MU-MIMO Mesh Point - White

Model: UAP-BEACONHD
Web Code: 17744916
Sold and shipped by | 4.5 seller rating (165 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Enjoy on orders from this seller.

Seller Return Policy

Read return policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

What's included:

  • 1 x UniFi BeaconHD, 1 x Wall Plate

Compared to a standard Wi-Fi device, the powerful BeaconHD uplink results in more than 4x larger Wi-Fi coverage range in an open space.

Benefits:

• 802.11ac Wave 2, 4x4 MU-MIMO technology

• 5GHz radio rate of up to 1.733 Gbps

• Works with UniFi Access Point or Dream Machine

• Enhanced signal levels improve radio data rates for nearby Wi-Fi devices

• 300+ Mbps performance over a wireless mesh hop

• Automatically discovered for adoption by UniFi Network Application

• The fastest way to extend Wi-Fi coverage and increase throughput

• High-Capacity Mesh Uplink Bi-directional uplink to nearby UniFi Access Point

• After it's plugged in, the UniFi AP Beacon HD automatically appears ready for adoption in the UniFi Network Application of the nearby UniFi AP and enhanced performance is immediately available after adoption

Technical Specifications:

• Processor: 880 MHz MIPS 1004KEc

• System Memory: 128 MB SDRAM

• Operating Frequency: 2.4GHz & 5GHz

• TX Power: (2.4GHz: 24.8dBm); 5GHz: 30dBm)

• Wi-Fi Standards: 802.11 a/b/g/n/ac/ac-wave2

• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF

• Antenna gain: (Single-Band: 5GHz - 5 dBi); (Dual-Band: 2.4GHz - 4.5dBi / 5GHz - 5 dBi)

• Advanced traffic management: VLAN-802.1Q; Advanced QoS Per-User Rate Limiting; Guest traffic isolation supported; WMM Voice, Video, Best Effort, and Background

• Supported Data Rates: (802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps); (802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)); (802.11ac Wave 2: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) 58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160)); 802.11b (1, 2, 5.5, 11 Mbps); 802.11g (6, 9, 12, 18, 24, 36, 48, 54 Mbps)

• Certifications: CE, FCC, IC
