饾棧饾椏饾椉饾棻饾槀饾棸饾榿 饾棗饾棽饾榾饾棸饾椏饾椂饾椊饾榿饾椂饾椉饾椈
路 Heavy & Sturdy Machine
Features a 7 inch swing over bed, 13.78 inch distance between centers and 20 mm spindle bore. Includes a thread range of 12-52 TPI, threading dial indicator and standard and metric handwheel graduations.

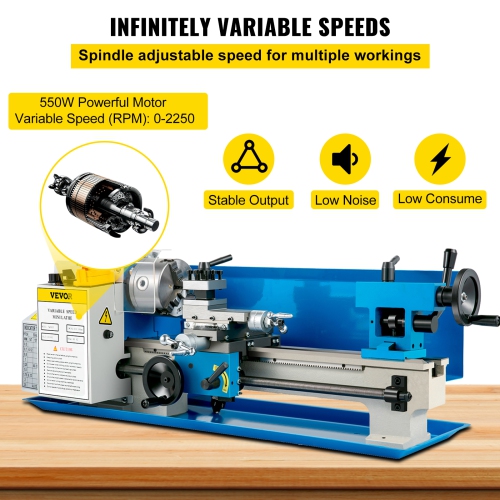

路 Infinitely Variable Speeds
Variable speed from 50-2500 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The feed speed can be adjusted according to the requirements of different workpieces.

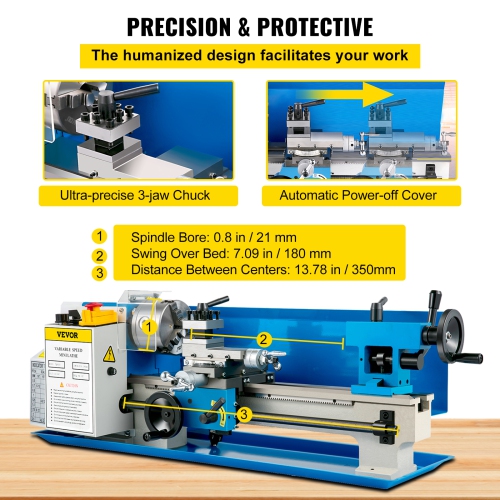

路 High Accuracy Chuck
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision ball bearing, spindle accuracy within 0.01mm.
路 Four-way Tool Post
T-slotted compound slide with four-way tool post, 4 blades avaliable at most, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.
路 Professional Cross Slide
The lathe is esigned with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 13.78" / 350 mm.
路 Adjustable Tailstock
The tailstock is compatible with any MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation.

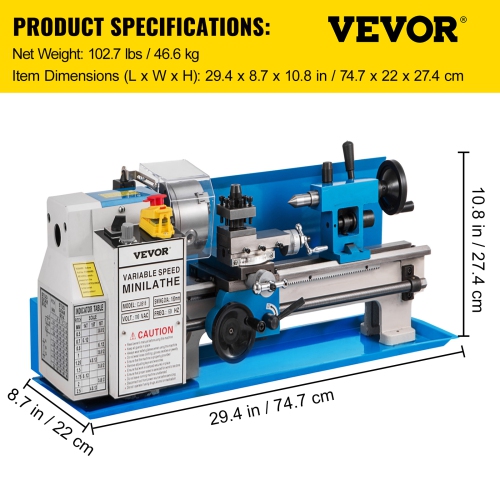

饾棪饾椊饾棽饾棸饾椂饾棾饾椂饾棸饾棶饾榿饾椂饾椉饾椈饾榾
Power of Motor: 550W DC Single Phase
Spindle Speed: 0-2250 RPM
Swing Over Bed: 180 mm (7.09")
Swing Over Cross Slide: 110 mm
Chuck Diameter: 100 mm (3.94")
Centers Distance: 350 mm (13.78")
Spindle Bore: 20 mm (0.79")
Spindle Taper: MT3
Tailstock Taper: MT2
Cross Slide Travel: 65 mm (2.53")
Top Slide Travel: 35 mm (1.36")
Spindle Accuracy: 0.01 mm
Inch Thread: 12-52 T.P.I
Metric Thread: 0.5-2.5 mm

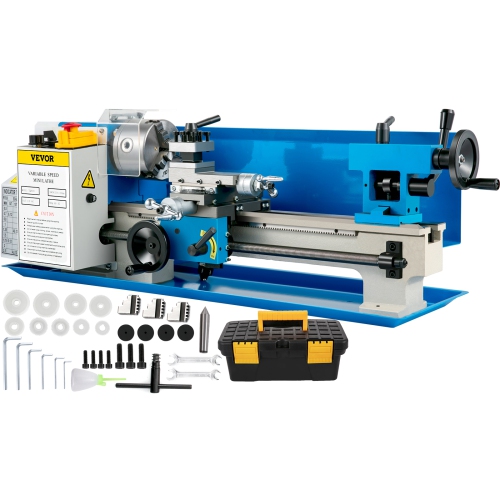

饾棧饾棶饾棸饾椄饾棶饾棿饾棽 饾棖饾椉饾椈饾榿饾棽饾椈饾榿
1 x Mini Metal Lathe
3 x Chuck Jaw
1 x Lathe Center
1 x Chuck Wrench
2 x Wrench
1 x Oil Can
5 x Hex Wrench
9 x Plastic Nylon Gear
2 x Handle
4 x Rubber Feet
4 x Screws
1 x Tool Box

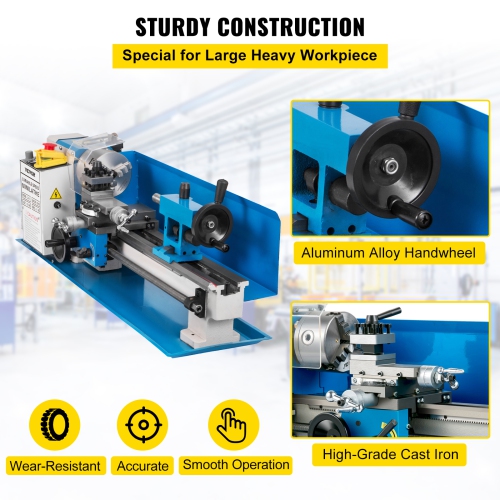

路 Sturdy Aluminium Construction: The mini metal lathe bed is made of high grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, sturdy, more accurate rotation and professional. Mini metal lathe power of motor: 550W. The full-length splash guard provides max. protection.
路 Infinitely Variable Speeds: Spindle speed from 0-2250 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The hardness and accuracy of the v-slide ways are obtained by raw material, heat hardening and grinding. Emergency stop button included.
路 Accurate 3-Jaw Chuck: Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Back splash guard included. Spindle is supported by precision ball bearing, spindle accuracy within 0.0004" / 0.01 mm.

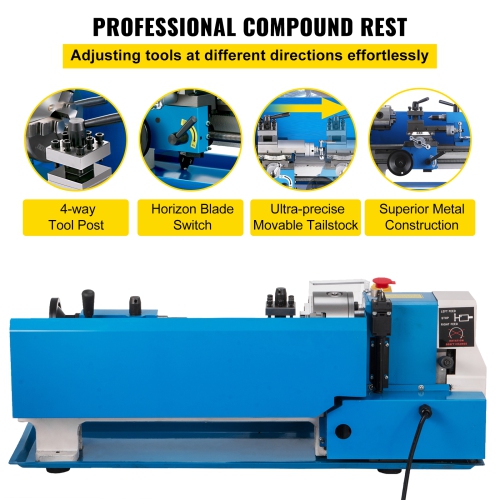

路 Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.

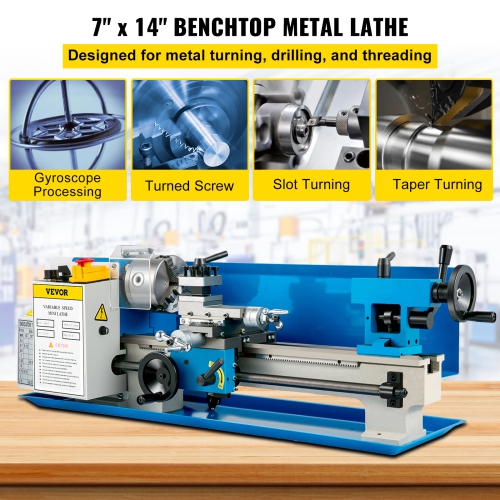

路 Wide Application: Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works.
