The EXM70 is the most versatile ultra-compact portable PA system Yorkville Sound has ever offered.
Weighing in at under 15 pounds (6.6 kg), the EXM70 uses two high quality long excursion 6.5 inch woofers and a studio monitor quality soft dome tweeter to deliver quality full range tone from as small a footprint as physically possible.
The integrated two channel 70-watt passively cooled bi-amplifier, combined with a 3-channel mixer, allows direct connection of instruments, media players (direct or via Bluetooth) or microphones to the system without an additional external mixer. Individual volume and tone controls, effect sends for each input channel, and a digital effect processor ensure the EXM70 is ready for any solo or duo performance.
Two EXM70's can be linked using a single XLR microphone cable effectively doubling all inputs and output power for larger events and increased audience coverage.
Built for mobile convenience, the EXM70 has an integrated handle for easy transport, and an integrated standard speaker stand mount adapter for maximum projection in any live sound application.
- Ultra-Compact High Performance Portable PA System
- Three Discrete Input Channels w/ Individual Volume and Tone Control
- Integrated Digital Effect Processor
- Rugged ABS Cabinet Design
- All-Metal Grille to Protect Speaker Components
- Passively Cooled (No Fans Required)
- Integrated Standard Speaker Stand Mount
- Bluetooth enabled
- Made in Canada
Specifications
Power Rating: 70 Watts (140 Watts Peak)
Max SPL: 115dB
Frequency Response: 90 - 20k(Hz +/- 3dB)
Speaker Configuration - Inputs: 2 x 6.5-inch
Speaker Configuration - HF: 1-inch Soft Dome

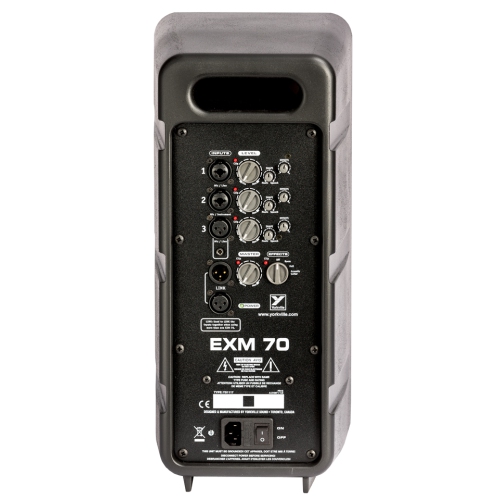

Inputs: 3
Channel 1 Input: XLR / 1/4-inch Combi-jack
Channel 1 Controls: Level, Shape, Effects Send
Channel 2 Input: XLR / 1/4-inch Combi-jack
Channel 2 Controls: Level, Shape, Effects Send
Channel 3 Input: XLR Mic & 1/8-inch TRS Stereo Jack, Bluetooth
Channel 3 Controls: Level, Shape, Effects Send, Bluetooth
Master Volume Control: Yes
Link In/Out (type / configuration): XLR Connector
LED Indicators: Power, CH1, CH2, CH3
Other Features: Digital Effects
Dimensions (DWH xbackW, inches): 17.5 x 7.75 x 8
Dimensions (DWH xbackW, cm): 44.5 x 19.7 x 20.25
Weight: 16.3 lbs / 7.4 kg
