Overview

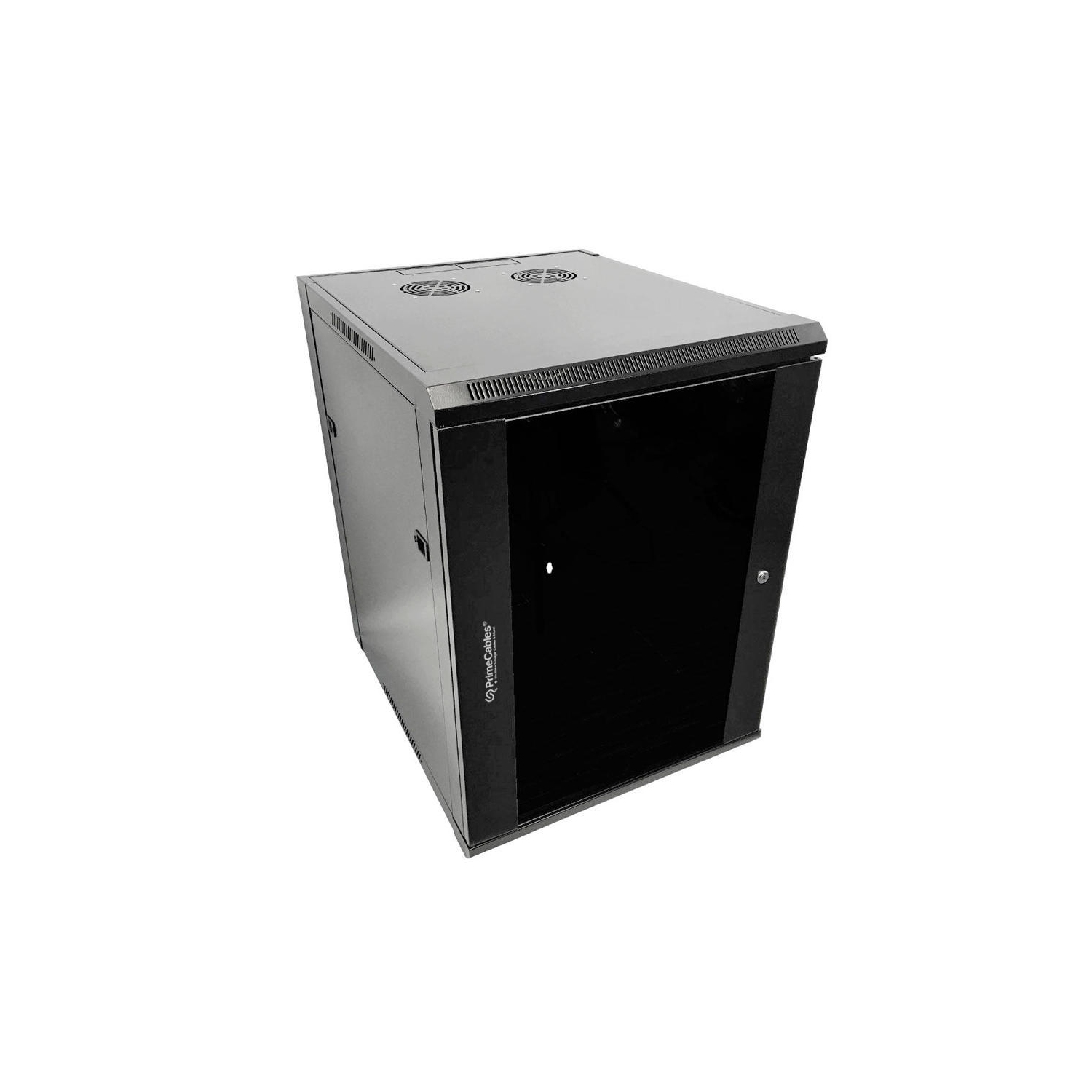

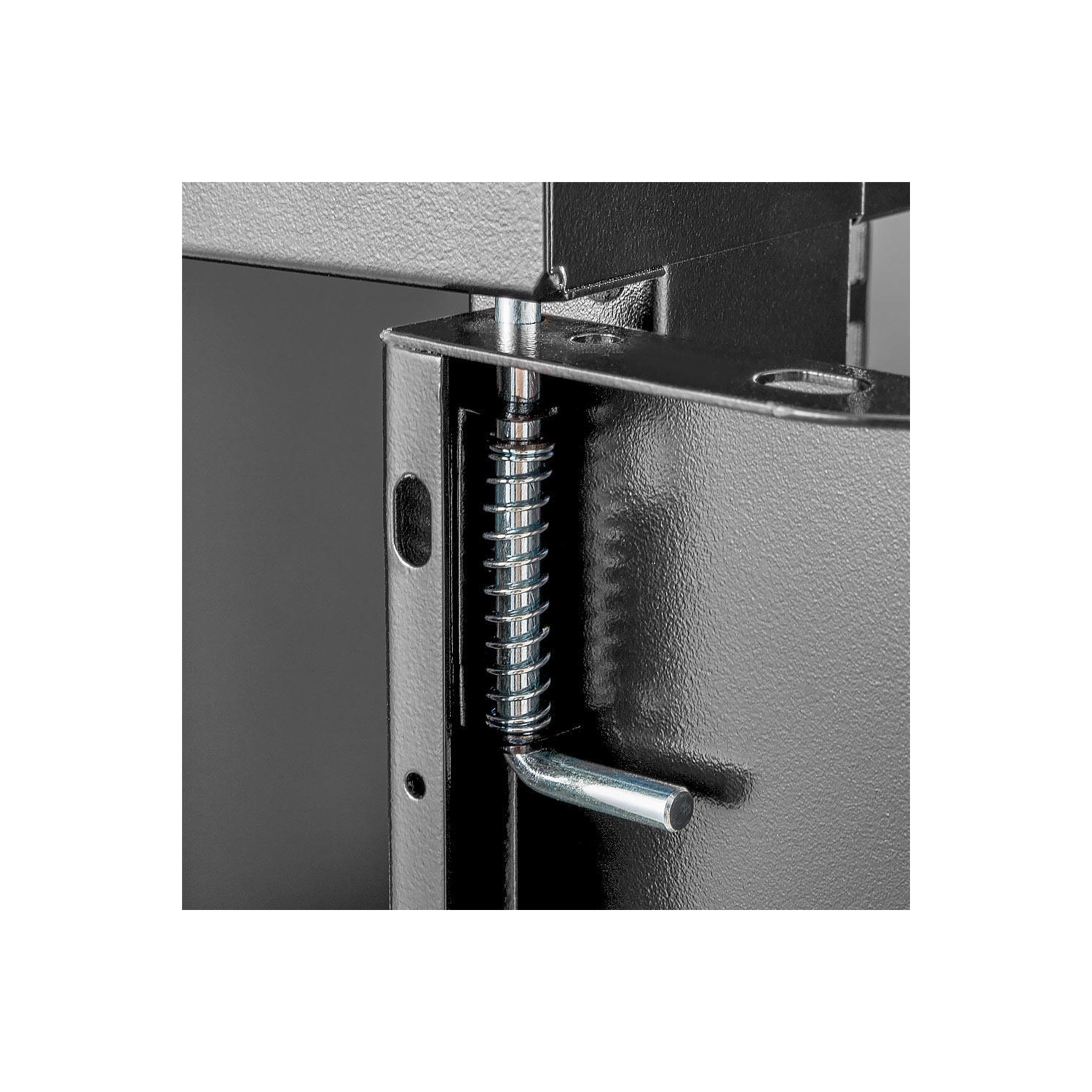

This 12U wall mount cabinet comes with a lockable front door, removable side panels and two fans. The cabinets are fully vented with a lockable steel framed glass door for safety and security. Quick release hinges allow for easy access to the cabinet for loading equipment and cables.

12U Network Server Rack, Server Cabinet Wall Mount Glass Door, 2 AC Powered Ventilation Fans with Hardware Including

Model: Cab-PC-07908
Web Code: 16485681
Sold and shipped by | 4.2 seller rating (1,562 reviews)

Available for deliveryAvailable online only

Delivery times vary by location. Most Marketplace items leave sellers' locations within 2 business days. Allow additional time for shipping.

Seller Return Policy

Read return policy

Warranty

Check with the manufacturer for details.

For Quebec residents: See the Availability Guarantee disclosure in the Specifications section below.

✅About this item

12U wall-mounted enclosure, supplied with a lockable door;

Mountable to wall or backboard, can accommodate a range of 19” products;

Opening angle of front door is over 180 degrees;

Glass front door can be assembled to open in either direction;

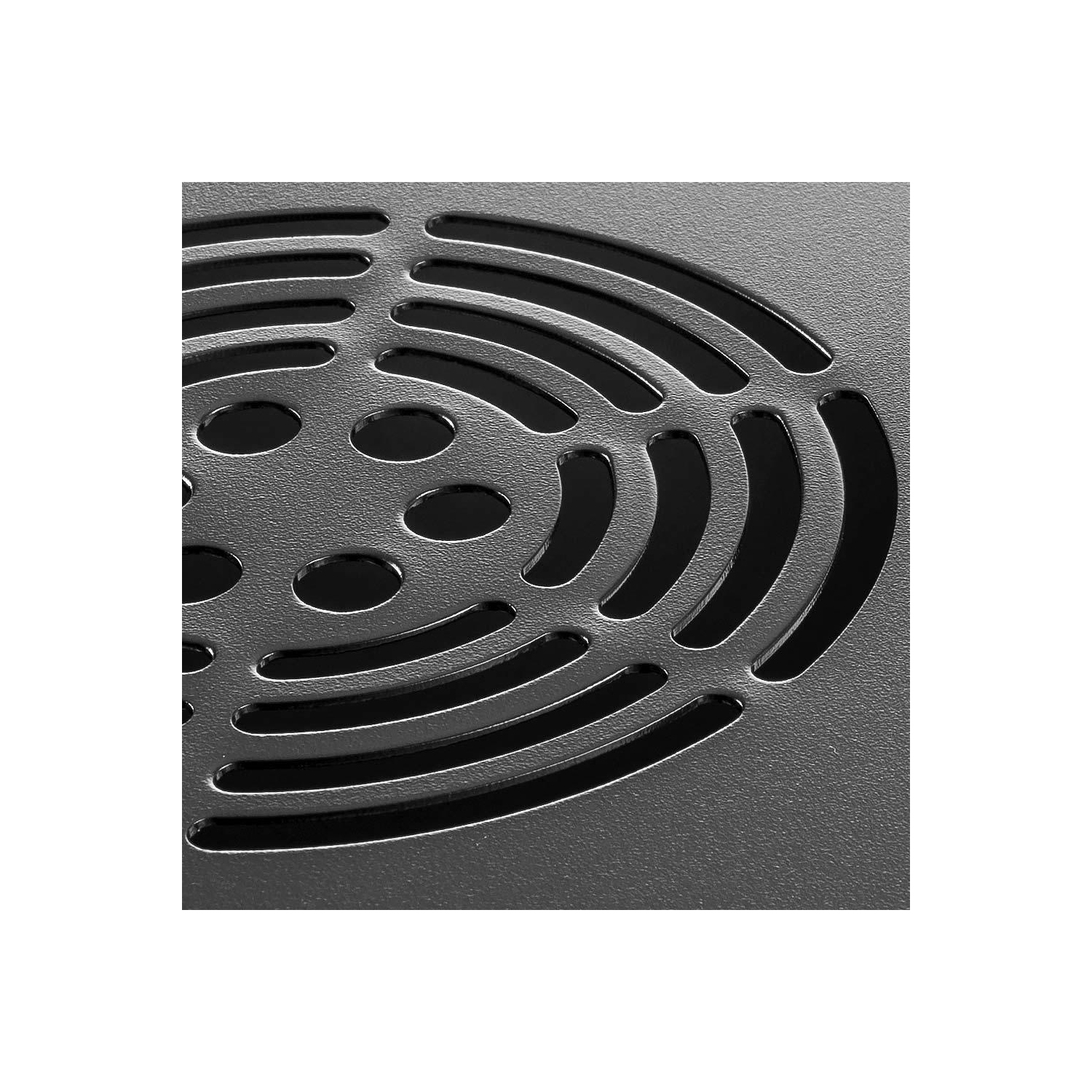

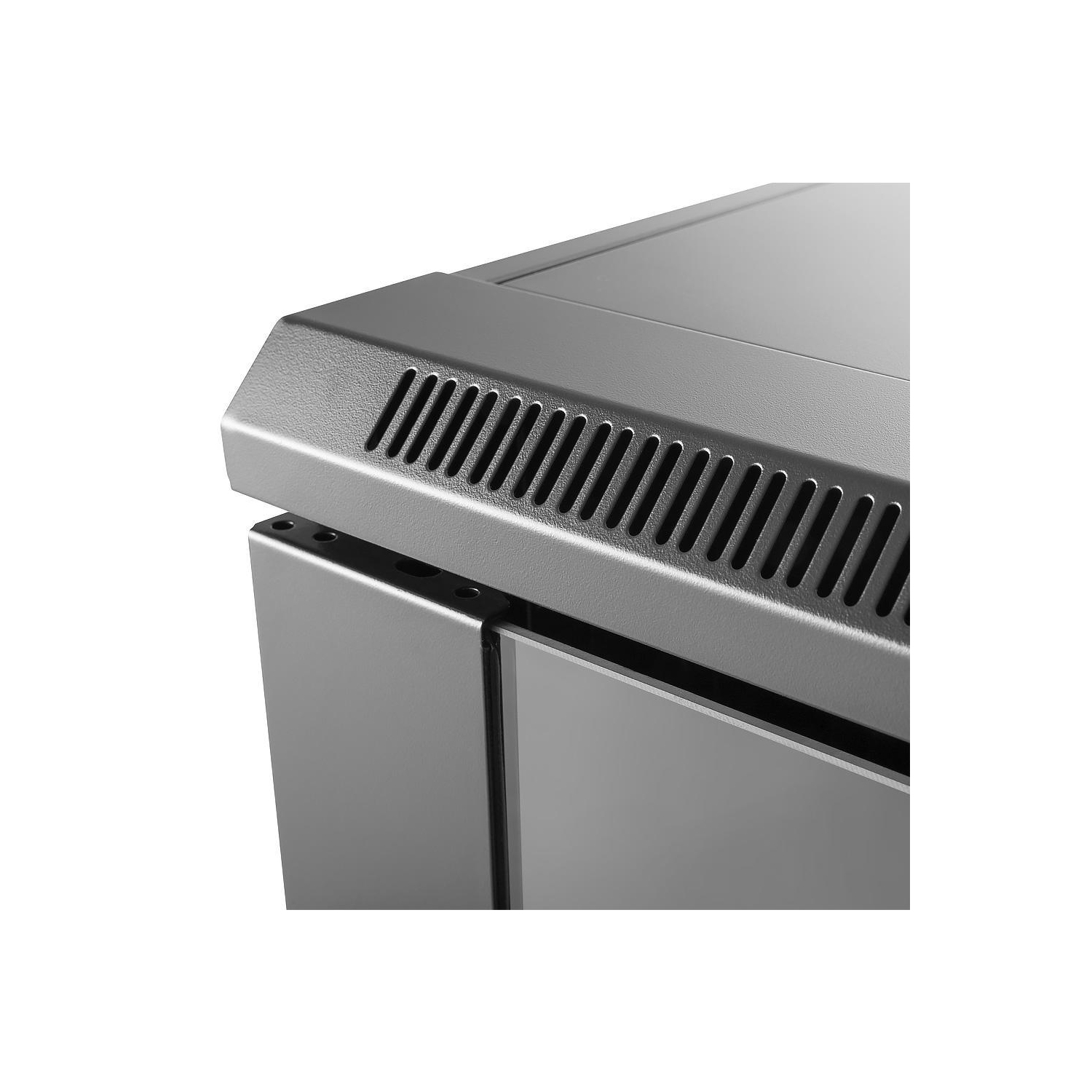

Standard ventilation top. Up to two fans can be fitted to top cover for cooling of active equipment.

✅Specifications

Material: SPCC Cold Rolled Steel

Material Thickness: mounting profile: 1.2mm, others: 1.0mm

Product Dimensions: 25 H, 22.5 W, 17.7 D inches [63.5 H, 57 W, 45 D cm]

Usable Mounting Dimensions: 12U Height x 19" Wide x 14.5" Deep

Doors: steel+glass front door, opening direction of the door can be changed

Turning angle of the front door: Over 180 degrees

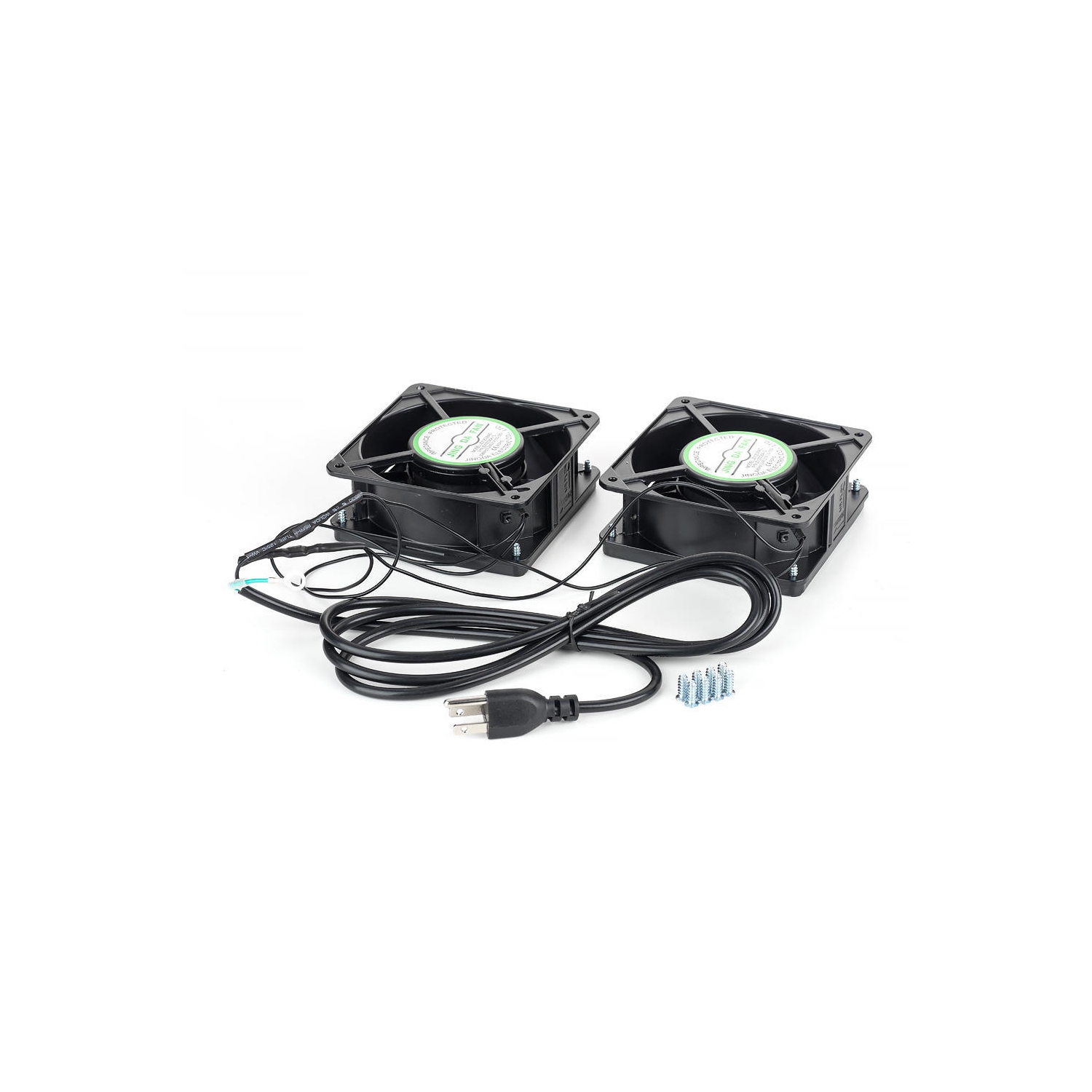

Cooling Fans: 2 fans located on the top panel

Loading Capacity: Maximum 132 lbs [60 kg]

Product Weight: 56.2 lbs [25.5kg]

Front Rail Depth: Adjustable depth 105mm 125mm 145mm 165mm 185mm 267mm 297mm 317mm 337mm 357mm (Measured from the Glass to the Rail)

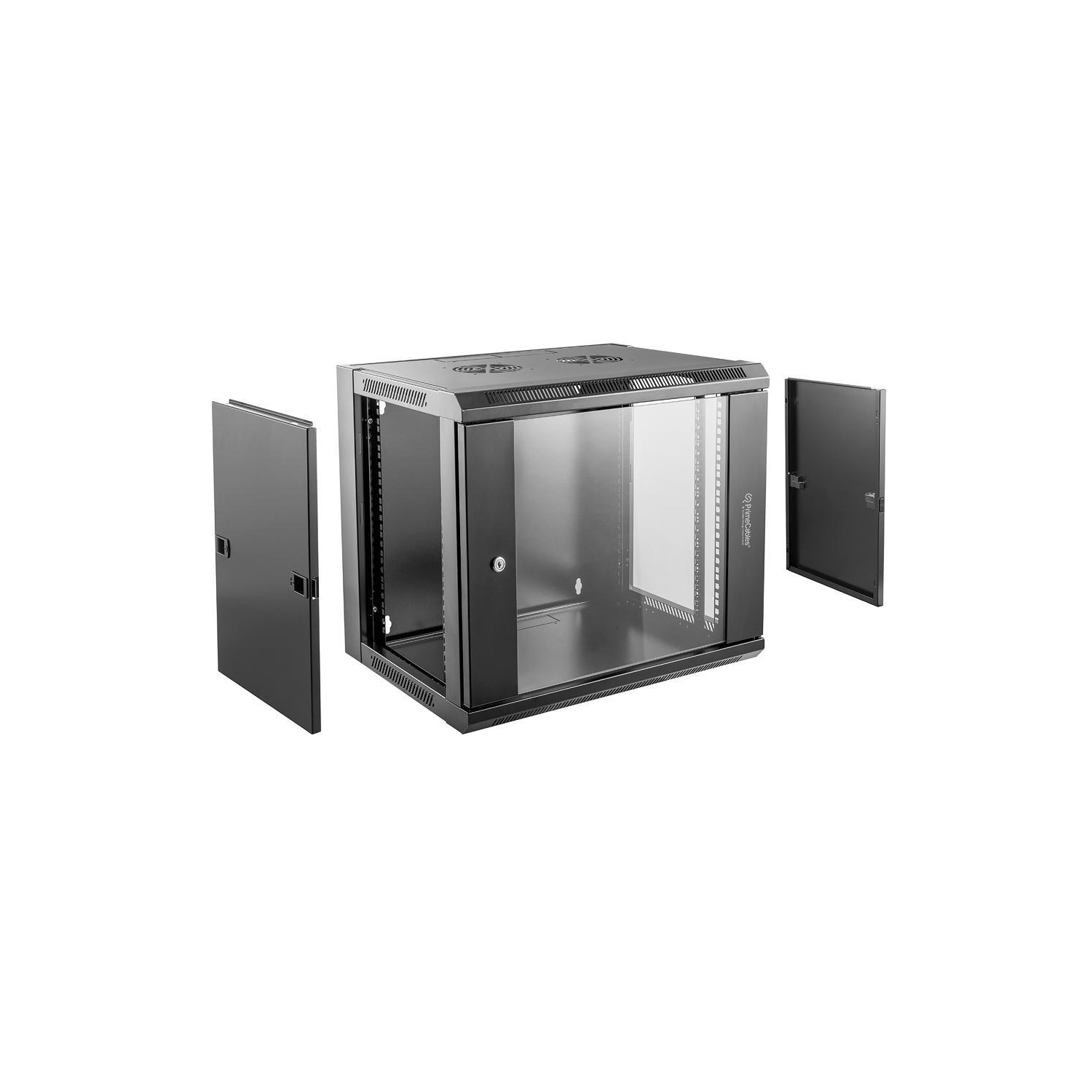

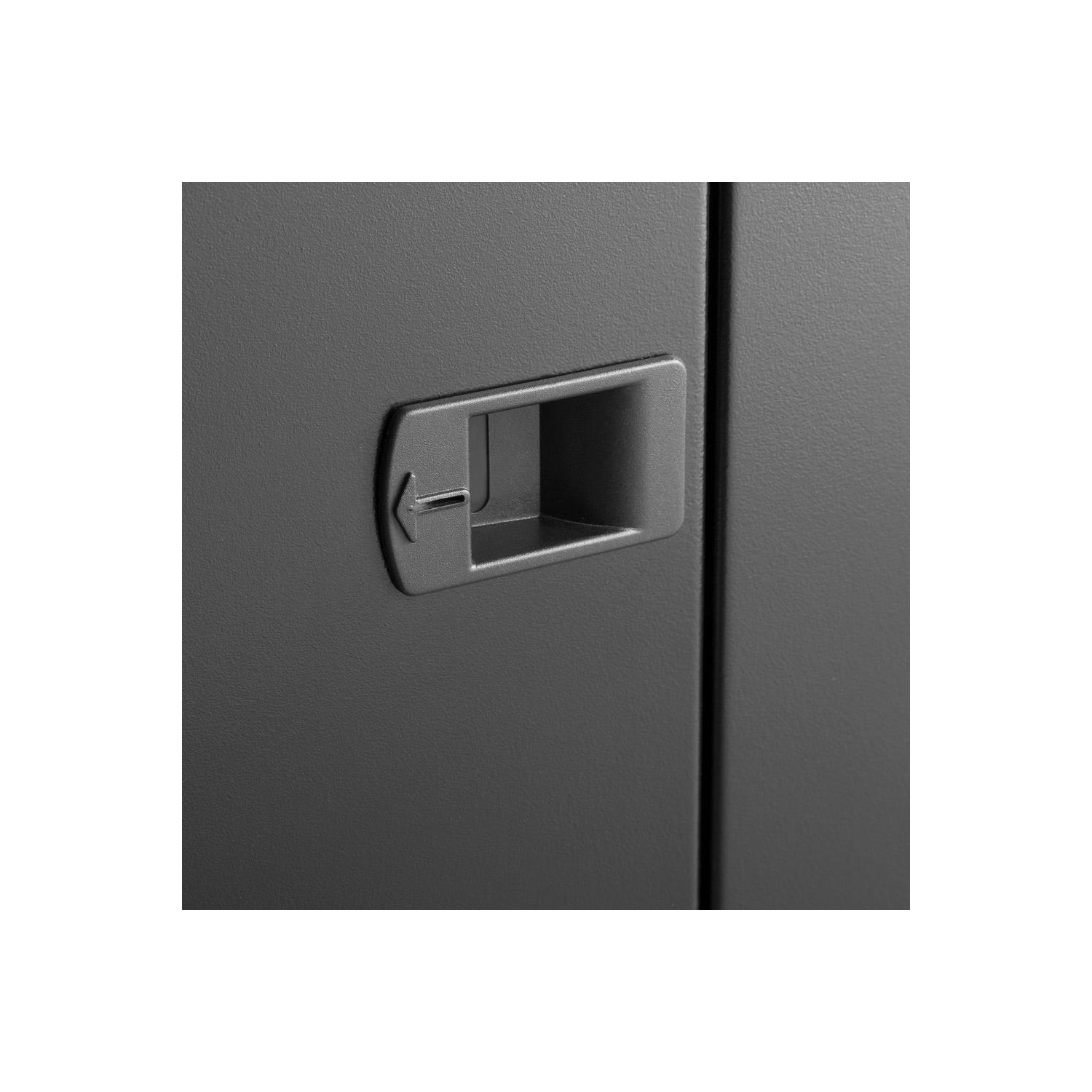

Removable Side Panels: Yes

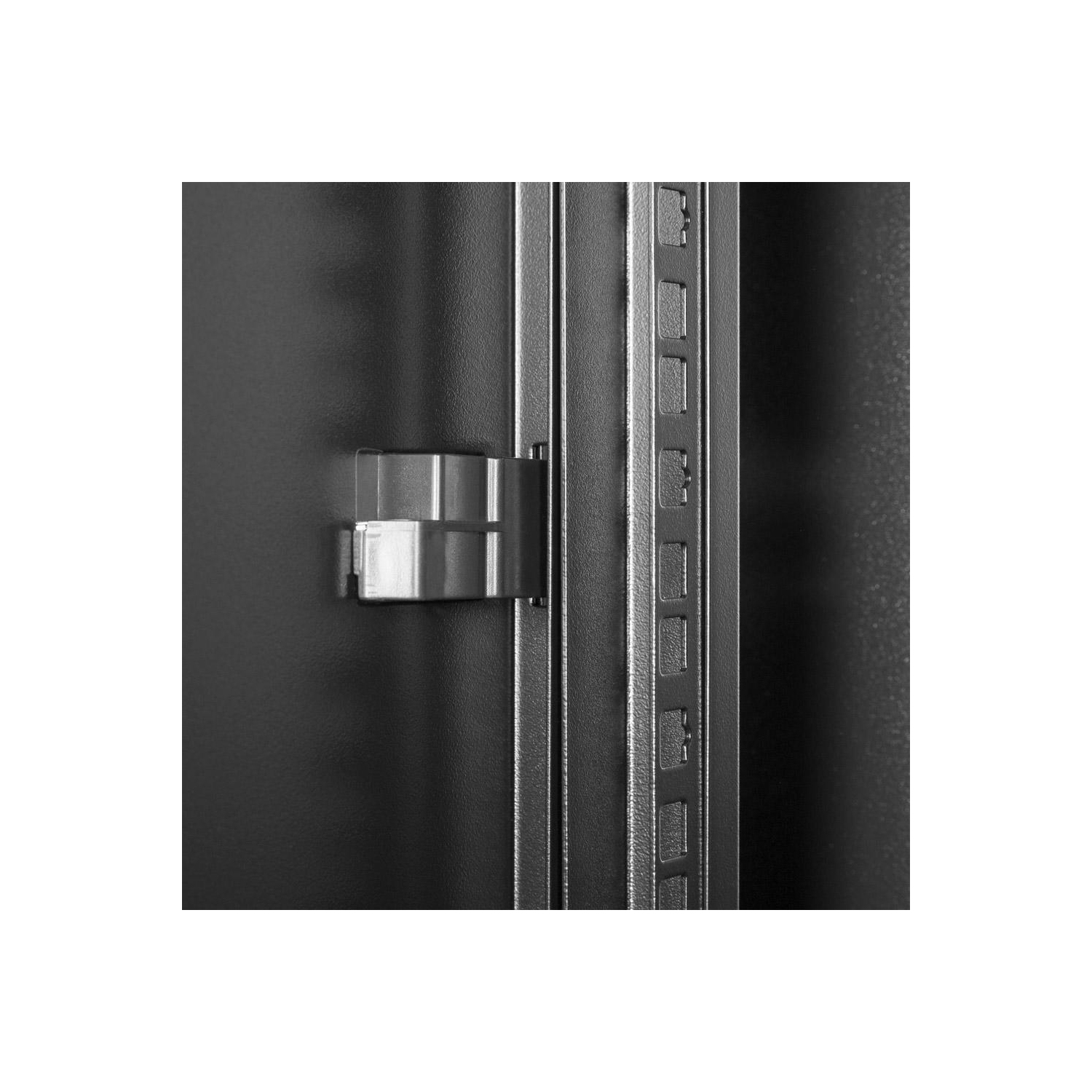

Adjustable Mounting Profile Installation: Yes

Assembly Required: Yes (Flat Packed)

Cable Entries: Cable entry on both of top cover and bottom panel

ANSI/EIA: Yes

RS-310-D: Yes

IEC60297-2: Yes

DIN41494: Yes

PART1: Yes

PART7: Yes

RoHS: Yes

Reach: Yes

✅Packaged Included

1 - Wall Mount Cabinet 12U (Unassembled)

M5X10 self-tapping screws--- 8pcs

M6X12 screws ---8pcs

M6X12 screws&square nuts---20SE
