About: Alpine Status HDZ-653 Hi-Res 6.5” 100W RMS 3-Way Component Speaker Set
Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res Alpine F#1 Status System technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.
Studio-Level Recording
Drawing inspiration from the AlpineF#1Status system, the HDZ-653 features a unified carbon composite cone construction throughout the speaker components for a unified timbre identity. Alpine Proprietary Double Gathered Edge Surround technology gives the speakers ultra-low distortion and linear diaphragm movement that reproduces music true to the artist’s original intentions.
Ultra-Wide Frequency Range
Custom developed for Hi-Res Audio Playback, the HDZ-653 has an ultra-wide bandwidth of 55Hz-40kHz which is perfectly suited for accurate reproduction of even the highest quality of studio recordings. Each speaker component is designed to cover a wider range of playback spectrum giving the tuner a wider range of adjustability.
Flexible Installation Options
The Alpine Status speaker line features two fitments for flexible installation options including a custom-fix model for custom applications and factory-fit models that were intentionally designed to fit into most factory speaker holes without custom work. The HDZ-653 is a custom-fit model that includes a 6.5-inch Mid-Bass driver, a 3.5-inch Midrange driver, and 1.25-inch High-Range driver.
Optimized for Full System
The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.
Features:

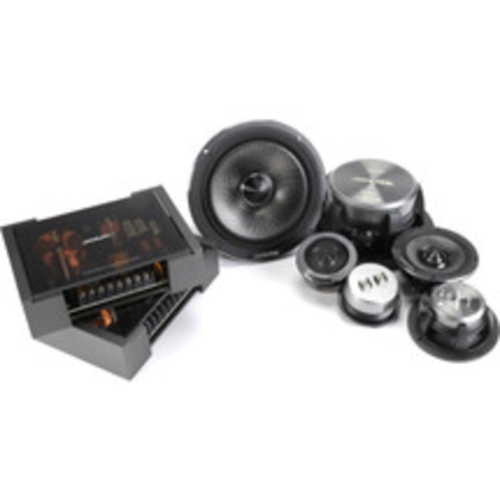

3-way component speaker system
6-1/2" carbon composite woofer with double-gathered edge surround
3-1/2" carbon composite midrange
1-1/4" dome tweeter
handles up to 100 watts RMS (300 watts peak power)
frequency range: 55-40,000 Hz
sensitivity: 88 dB
What's in the Box:

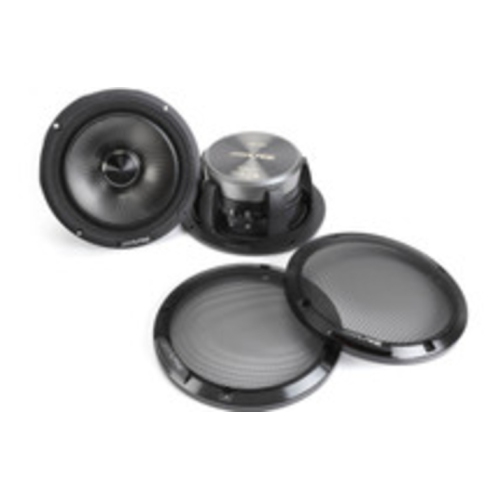

Two woofers
Two woofer grilles
Two midrange
Two midrange grilles
Two tweeters
Two threaded tweeter mounting rings

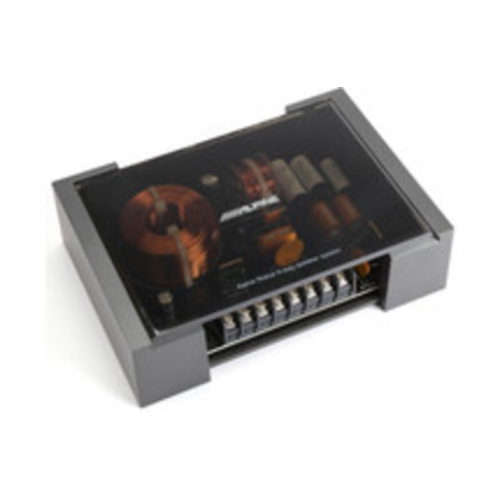

Two crossovers
Eight M4 Screws (1-1/8")
Sixteen M3 Screws (1-1/8")
Eight speed-clips
Eight flat washers
Owner's manual
Warranty information
