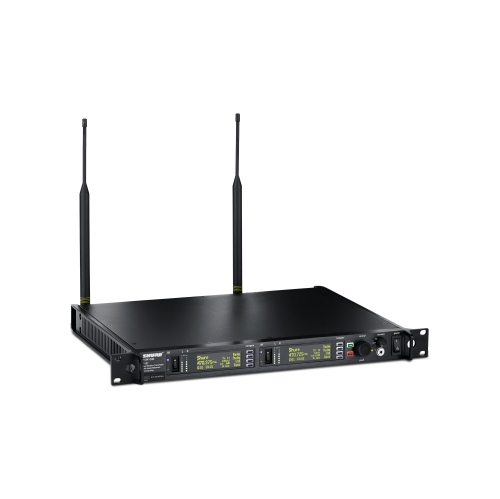

The P10T is a networkable, full-rack, dual channel wireless transmitter used in conjunction with the P10R+ Wireless Bodypack Receiver as part of the PSM1000 Personal Monitor System. It offers a 72 MHz wide tuning bandwidth, networked remote control via Wireless Workbench software, advanced rechargeability options, and PSM900 backwards compatibility.

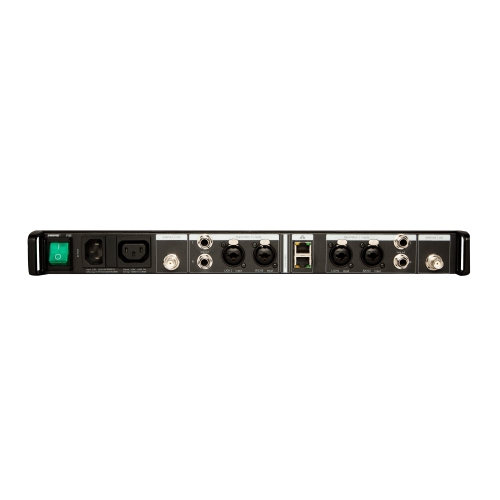

Connections include balanced 1/4" and XLR, loop out, dual Ethernet ports, and headphone monitor out. Comes with front or back mountable antennas, and power and Ethernet jumper cables. The P10T is housed in a touring-grade, all-metal chassis.
Works with Wireless Workbench 7 - a FREE download from Shure.
Wireless Workbench is Shure's free software for audio professionals that puts a full suite of RF spectrum management tools in one place to give you full command of your compatible wireless devices. Guarantee that you are prepared to succeed in any RF environment - no matter the location. See the video for more details.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features:* Full rack, dual-channel transmitter in a professional, touring grade chassis
* 72 MHz wide tuning range provides flexibility and performance in crowded, unpredictable RF environments
* Networkable over Ethernet connection to provide comprehensive frequency coordination and transmitter remote control via Wireless Workbench software:
RF mute enable/disableRF output power adjustmentsAux/line levelAudio input levelChannel/device name editFirmware updates* Backwards-compatible with PSM900 receivers
* RF Mute Switch allows system setup without causing RF interference
* Sync RF scan information from a P10R bodypack quickly and easily over IR link
* Switchable 10/50/100 mW output power provides a robust RF link in a variety of performance environments
* Spectrum display provides a detailed frequency plot on the menu screen with selectable zoom
* Front panel audio input gain adjustment and LED level meter with clipping indicator
* Exceptional transmitter linearity vastly reduces frequency intermodulation, allowing more compatible channels per frequency range
* High-contrast LCD with grouped menu items provides an intuitive user interface
* Front or back mountable antennas
* Compatible with PA421A and PA821A antenna combiners
* Loop out connectors for multiple mix setups and easy installation
* Switchable +4dBu and -10 dBV input level
* Balanced, 1/4" and XLR connectors
* 1/8" headphone out on the front panel for easy monitoring
Specifications:RF Carrier Range: 470952 MHz (regionally dependent)
Compatible Frequencies: 39 per band
Tuning Bandwidth: 72 MHz - 80 MHz (regionally dependent)
Operating Range: 90m (300ft)
Audio Frequency Response: 35Hz to 15kHz
Stereo Separation: 60 dB
Signal-To-Noise Ratio: 90 dB (typical) (A-Weighted)
Total Harmonic Distortion: 80 dB (typical)
Frequency Stability: +/-2.5 ppm
MPX Pilot Tone: 19 kHz (0.3 kHz)
Modulation: FM, MPX Stereo (34 kHz deviation, nominal)
Operating Temperature: -18 to +57 °C
