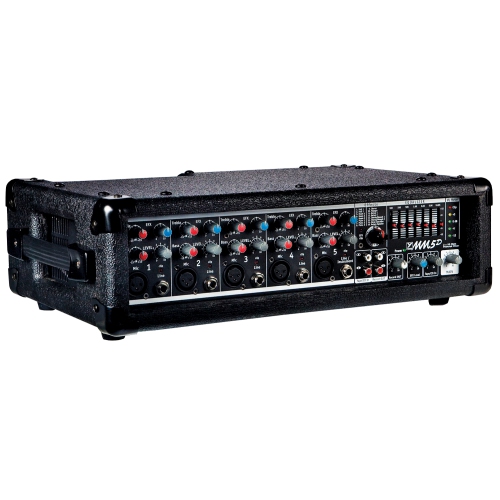

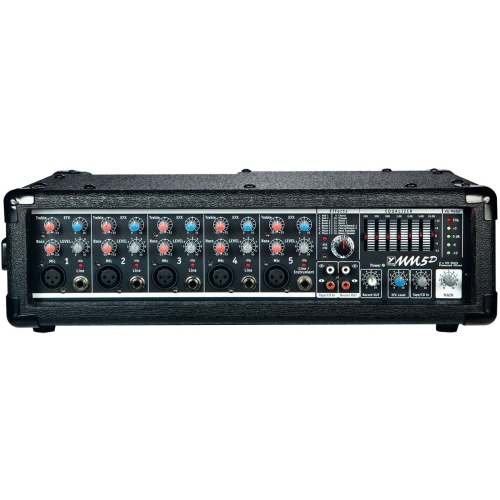

The MicroMix MM5D powered box mixer is the ideal PA solution for most applications where 2 x 90 watts (stereo) is enough power yet input flexibility is required. Balanced XLR mic, 1/4-inch phone and dual RCA line inputs, onboard user controlled digital effect unit and tape outs (with separate level controls) make the MM5D the perfect powered mixer for live PA, rehearsal, installation or announcement PA applications.
The rugged and reliable MM5D has flexible outputs, a scratch resistant front panel, durable carpet covering and corner protectors.
Chassis are constructed of heavy metal to withstand all the rocking and rolling associated with life on the road while inside we use high quality epoxy circuit boards coated with thick copper laminate and precision, 0.1-1% tolerance, low noise components. A large heatsink and a variable speed DC fan ensure that the mixers keep their cool. Of course MicroMIX mixers also come with Yorkville's standard two year (even if you break it!) transferable warranty in the USA and Canada. These are just a few of the characteristics which make MicroMIX mixers the "Best Bang for the Box".
Features:
5 input channels ( XLR & 1/4-inch in, 2-band EQ, level & effects send control per channel)
Additional CD/Tape in with level control
Separate Record out with level control
Stereo 7-band master Graphic EQ
2 x 90w powered out (stereo)
1/4-inch & Speakon speaker output jacks
On-board Digital effects
Specifications:
* Number of Channels: 5
* Mono Channel EQ: 2 band shelving
* Channel Effects: Yes
* Inputs - XLR (bal): Ch. 1 - 5
* Inputs - 1/4 IN: Ch. 1 - 5
* Inputs - RCA (unbal): Tape/CD in
* Internal Effects: 16 Digital Effects: reverb, echo, chorus, flange
* Effects Send: No
* Effects Return: No
* Effects Return to Main: Yes
* Effects Return to Monitor: No
* Record Outputs: Stereo RCA with level control
* Max Gain to Line Out -Mic Input (dB): 84dB
* Max Gain to Line Out -Line Input (dB): 70dB
* Main Outputs (Line Level): No
* Outputs - Amp A - 1/4 IN Jacks: 1
* Outputs - Amp A - Speakon 4-pin: 1
* Mixer - Freq Resp (Tone and EQ Flat,2dB): 40Hz - 20,000Hz
* Amp A and B-Power Output @ 8 Ohms : 2 x 60 watts
* Amp A and B- Power Output @ 4 Ohms: 2 x 90 watts
* THD - 1kHz (dB): less than 0.1%
* Typical crosstalk -1 kHz (dB-: less than - 60dB
* Power Consumption (typ/max): 1.0 A @ 120VAC / 0.5 A @ 230VAC
* Protection: Clip limiter, thermal shutdown
* Cooling: Passive heatsink and internal Fan
* Dimensions (DWH, inches): 9 x 17.75 x 6
* Dimensions (DWH, cm): 22.85 x 45 x 15.25
* Weight (lbs/kg): 19.2 / 9.7
